2202-3233 | WAGO
Feed-through/feed-through/feed-through terminal block, spring-clamp connection, 0.25-4.0 mm², 3 pole, 22 A, 6 kV, gray, 2202-3233
Unit Price (€ / pc.)
4.6648 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

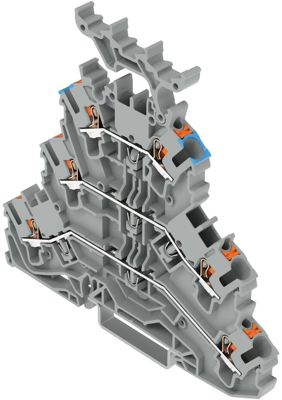

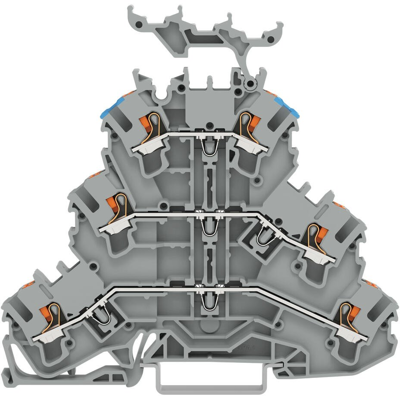

Terminal block, 2202-3233, WAGO
Triple-deck terminal block, with push-button, Through/through/through terminal block, L/L/N, with marker carrier, suitable for Ex e II applications, Blue conductor entry upper deck, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², Push-in CAGE CLAMP, 2,50 mm², gray.
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 6 | |
| Ausführung | Durchgangs-/Durchgangs-/Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 22 bis 12 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |

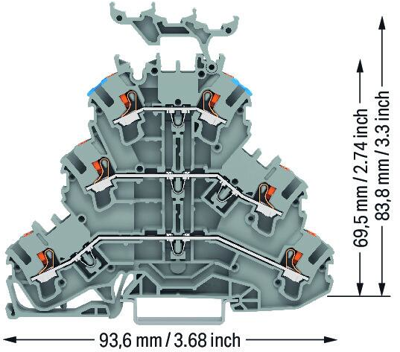

| Breite | 5.2 mm | |
| Farbe | grau | |
| Höhe | 93.6 mm | |
| Leiterquerschnitt | 0,25-4,0 mm² | |
| Nennstrom | 22 A | |
| Polzahl | 3-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
