2202-3239 | WAGO

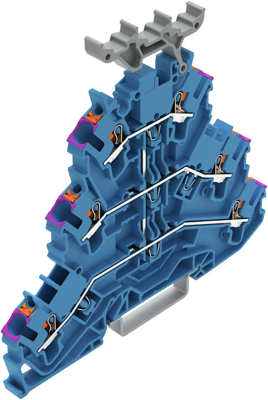

Three level through clamp, spring-clamp connection, 0.25-4.0 mm², 1 pole, 24 A, 6 kV, blue, 2202-3239
Unit Price (€ / pc.)
6.8663 € *
Available: 0 pcs.
Leadtime: On Request **
Terminal block, 2202-3239, WAGO

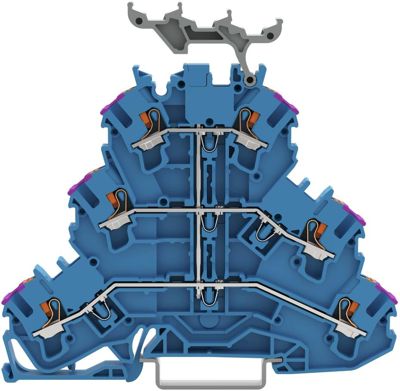

Triple-deck terminal block, with push-button, 6-conductor through terminal block, N, with marker carrier, for Ex e II and Ex i applications, internal commoning, conductor entry with violet marking, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², Push-in CAGE CLAMP, 2,50 mm², blue.
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 6 | |
| Version | three level terminal | |
| AWG cross-section | AWG 22 to 12 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |

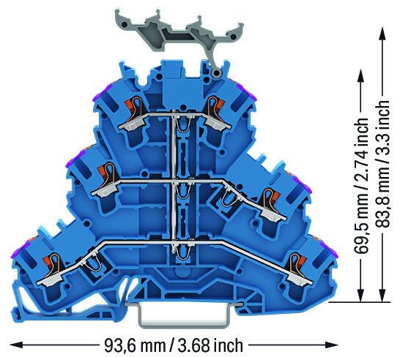

| Width | 5.2 mm | |
| Colour | blue | |
| Height | 93.6 mm | |
| Cable cross-section | 0.25-4.0 mm² | |
| Rated current | 24 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
