2203-6560 | WAGO
Installation terminal block, spring-clamp connection, 0.25-4.0 mm², 3 pole, 22 A, 4 kV, gray, 2203-6560
Unit Price (€ / pc.)
4.9623 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Installation terminal block, 2203-6560, WAGO
Multilevel installation terminal block, with operating slots and push-button, 2.5 mm², carrier terminal block without knife, P1/P2/PE, Push-in cage clamp, 2.50 mm², gray.
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 5 | |
| Ausführung | Installationsetagenklemme | |
| AWG-Leiterquerschnitt | AWG 22 bis 12 | |
| Bemessungsspannung | 250 V | |
| Bemessungsstoßspannung | 4 kV | |
| Breite | 5.2 mm | |
| Farbe | grau | |

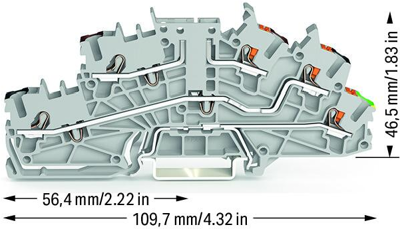

| Höhe | 109.7 mm | |
| Leiterquerschnitt | 0,25-4,0 mm² | |
| Nennstrom | 22 A | |
| Polzahl | 3-polig | |
| Verschmutzungsgrad | 2 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
