2204-1304 | WAGO
3-wire feed-through terminal, spring-clamp connection, 0.5-6.0 mm², 1 pole, 32 A, 8 kV, blue, 2204-1304
Unit Price (€ / pc.)
1.7136 € *
Available: 45 pcs.
Leadtime: 3 Weeks **
Total Price:
1.71 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7136 €
10 pcs.
1.5708 €
50 pcs.
1.4280 €
100 pcs.
1.2852 €
*incl. VAT plus shipping costs
**Subject to prior sale

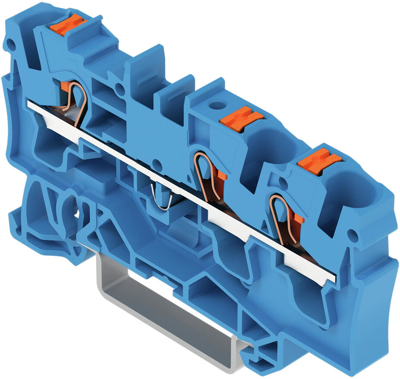

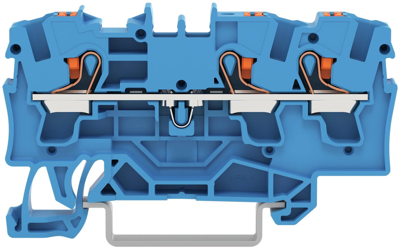

3-wire feed-through terminal, 2204-1304, WAGO
3-conductor through terminal block, with push-button, 4 mm², with test port, suitable for Ex i applications, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in cage clamp, 4.00 mm², blue.
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 3 | |
| Ausführung | 3-Leiter-Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 20 bis 10 | |
| Bemessungsspannung | 800 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 6.2 mm | |
| Farbe | blau | |
| Höhe | 65.5 mm | |
| Länge | 39.5 mm | |
| Leiterquerschnitt | 0,5-6,0 mm² | |
| Nennstrom | 32 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
