2206-1663 | WAGO
2-wire base terminal, spring-clamp connection, 0.5-10 mm², 2 pole, 30 A, 8 kV, red, 2206-1663
Unit Price (€ / pc.)
5.6168 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

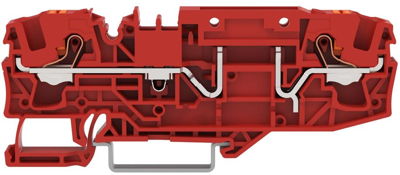

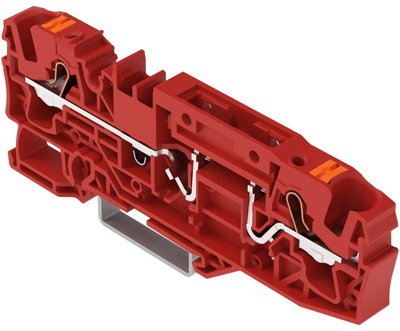

Terminal block, 2206-1663, WAGO
2-conductor carrier terminal block with push-button, for DIN-rail 35 x 15 and 35 x 7.5, 6 mm², Push-in CAGE CLAMP, 6,00 mm², red.
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 2 | |
| Version | 2-wire base terminal | |
| AWG cross-section | AWG 20 to 8 | |
| Rated Voltage | 800 V | |
| Rated surge voltage | 8 kV | |

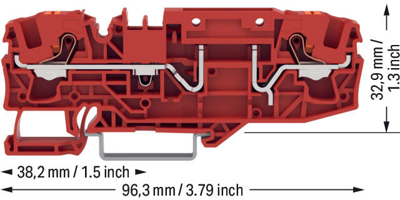

| Width | 7.5 mm | |
| Colour | red | |
| Height | 96.3 mm | |
| Cable cross-section | 0.5-10 mm² | |
| Rated current | 30 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
