2206-1681/1000-449 | WAGO

2 conductor fuse terminal, spring-clamp connection, 0.5-10 mm², 2 pole, 25 A, 8 kV, gray, 2206-1681/1000-449

Order No.: 44P9044
EAN: 4066966372595
MPN:
2206-1681/1000-449
Series: 2206
WAGO

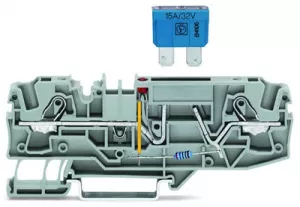

2206-1681/1000-449 WAGO Series Terminals
Image may differ
Unit Price (€ / pc.)
13.5303 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
13.53 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
13.5303 €

Terminal block, 2206-1681/1000-449, WAGO

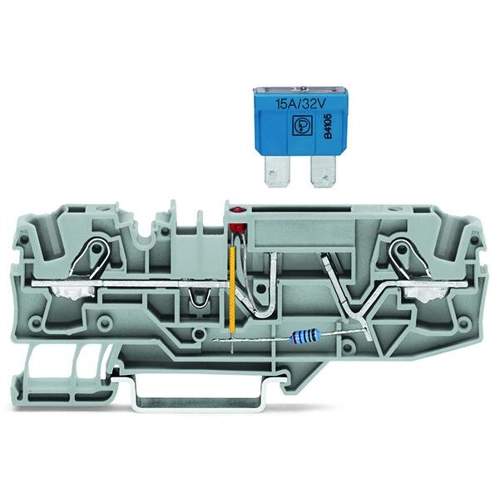

2-conductor fuse terminal block, for automotive blade-style fuses, with test option, with push-button, with blown fuse indication by LED, 12 V, for DIN-rail 35 x 15 and 35 x 7.5, 6 mm², Push-in CAGE CLAMP, 6,00 mm², gray.

Technical specifications
Connection spring-clamp connection
Number of terminals 2
Version 2-wire fuse terminal
AWG cross-section AWG 20 to 8
Rated Voltage 500 V
Rated surge voltage 8 kV
Width 7.5 mm
Colour gray
Height 96.3 mm
Cable cross-section 0.5-10 mm²
Rated current 25 A
Pin number 2 pole
Degree of soiling 3
Logistics
Country of origin DE
Customs tariff number 85369095
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
