2206-8039 | WAGO
Distribution terminal block, spring-clamp connection, 0.5-10 mm², 1 pole, 41 A, 8 kV, light gray, 2206-8039
Unit Price (€ / pc.)
6.6997 € *
Available: 0 pcs.
Available in 5 Days: 22 pcs.
Leadtime: 1 Week **

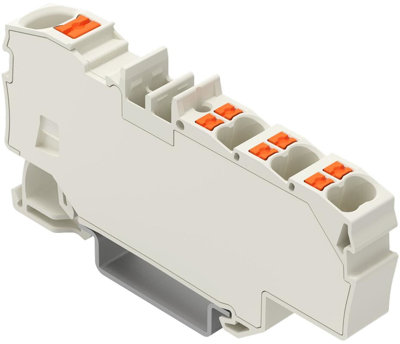

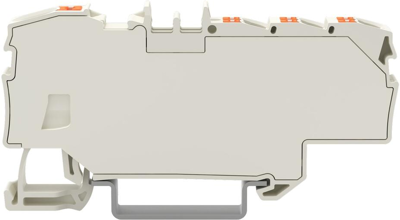

Terminal block, 2206-8039, WAGO
Distribution terminal block with push-button, 1 x 6 mm² / 6 x 1.5 mm², with integrated end plate, suitable for Ex e II applications, side and center marking, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 6,00 mm², light gray.
Technical specifications
Connection | spring-clamp connection | |
Number of terminals | 7 | |
Version | distribution terminal | |
AWG cross-section | AWG 20 to 8 | |
Rated Voltage | 800 V | |
Rated surge voltage | 8 kV | |

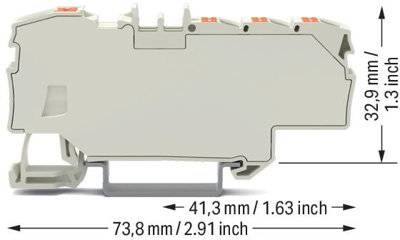

Width | 9 mm | |
Colour | light gray | |
Height | 73.8 mm | |
Cable cross-section | 0.5-10 mm² | |
Rated current | 41 A | |
Pin number | 1 pole | |
Degree of soiling | 3 |
Download
Logistics
Country of origin | DE |
Customs tariff number | 85369010 |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | No |
