1-wire N disconnect terminal, spring-clamp connection, 0.5-16 mm², 69 A, 4 kV, blue, 2216-7114

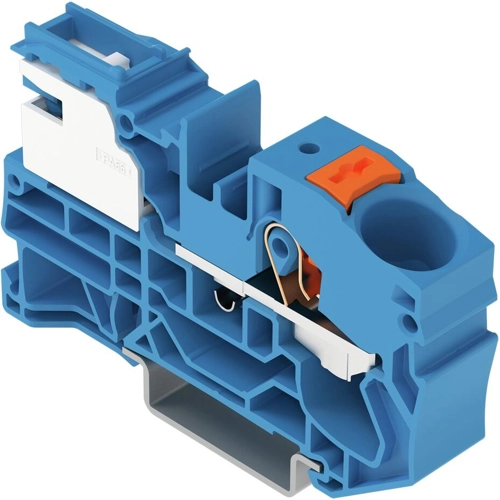

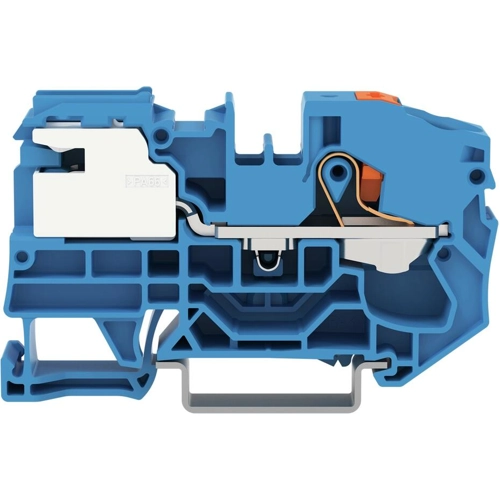

N-disconnect terminal block, 2216-7114, WAGO
This N-disconnect terminal block is designed for quick and easy connections. Ensure that the strip lengths are between 18 mm and 20 mm when connecting conductors to this N-disconnect terminal block. Featuring conductor terminals along with Push-in CAGE CLAMP, this product delivers reliable performance. It is a universal, maintenance-free connection solution for all conductor types, featuring a winning design: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. This N-disconnect terminal block is suitable for conductor cross sections ranging from 0.5 mm² to 16 mm². It features one level and a clamping point that you can use to connect a single potential. The blue housing is made of polyamide (PA66) for insulation. This installation rail-mount terminal block is mounted using DIN-35 rail.
| Connection | Federklemmanschluss | |
| Number of terminals | 1 | |
| Version | 1-Leiter-N-Trennklemme | |
| AWG cross-section | AWG 20 bis 6 | |
| Rated Voltage | 250 V | |
| Rated surge voltage | 4 kV | |

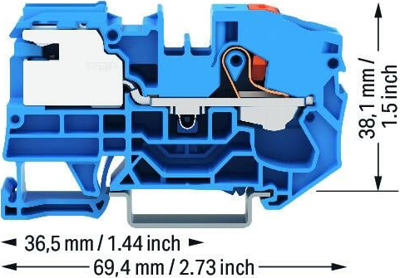

| Width | 12 mm | |
| Colour | blau | |
| Height | 69.4 mm | |
| Cable cross-section | 0,5-16 mm² | |
| Rated current | 69 A | |
| Degree of soiling | 3 |
| Country of origin | PL |
| Customs tariff number | 85369010 |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
