1-wire/1-pin basic terminal, push-in connection, 0.25-4.0 mm², 1 pole, blue, 2222-1204/999-953
Unit Price (€ / pc.)
1.7136 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.71 € *
Price list
Quantity
Price per unit*
1 pcs.
1.7136 €
10 pcs.
1.5946 €
50 pcs.
1.4637 €
100 pcs.
1.3328 €
*incl. VAT plus shipping costs
**Subject to prior sale

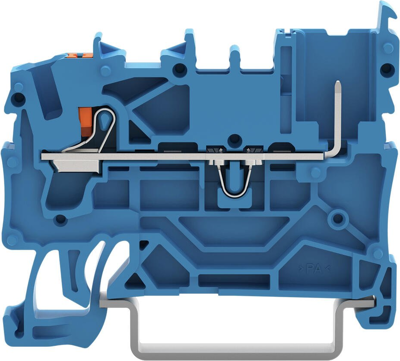

1-conductor/1-pin carrier terminal block, 2222-1204/999-953, WAGO
1-conductor/1-pin carrier terminal block with push-button, 2.5 mm², suitable for Ex nA applications, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2.50 mm², blue.
Technical specifications
| Anschluss | Push-in-Anschluss | |
| Anzahl der Klemmstellen | 1 | |
| Ausführung | 1-Leiter/1-Pin-Basisklemme | |
| AWG-Leiterquerschnitt | AWG 22 bis 12 | |

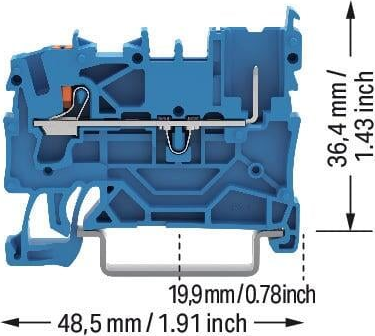

| Breite | 5.2 mm | |
| Farbe | blau | |
| Höhe | 48.5 mm | |
| Leiterquerschnitt | 0,25-4,0 mm² | |
| Polzahl | 1-polig |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
