2222-1207/999-953 | WAGO
1-wire/1-pin PE basic terminal, push-in connection, 0.25-4.0 mm², 1 pole, green-yellow, 2222-1207/999-953
Unit Price (€ / pc.)
3.2249 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.22 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2249 €
10 pcs.
2.9988 €
50 pcs.
2.7608 €
100 pcs.
2.5109 €
*incl. VAT plus shipping costs
**Subject to prior sale

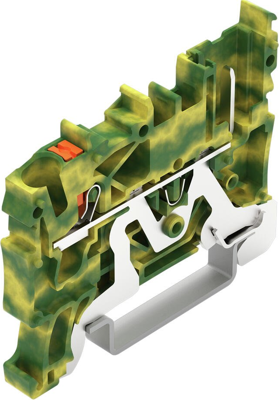

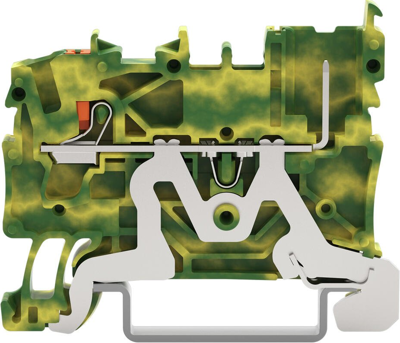

1-conductor/1-pin ground carrier terminal block, 2222-1207/999-953, WAGO
1-conductor/1-pin ground carrier terminal block with push-button, 2.5 mm², suitable for Ex nA applications, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2.50 mm², green-yellow.

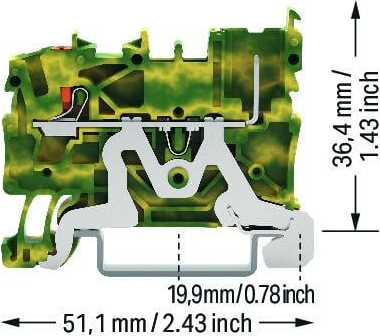

Technical specifications
| Connection | push-in connection | |
| Number of terminals | 1 | |
| Version | 1-wire/1-pin PE basic terminal | |
| AWG cross-section | AWG 22 to 12 | |
| Width | 5.2 mm | |
| Colour | green-yellow | |
| Height | 51.1 mm | |
| Cable cross-section | 0.25-4.0 mm² | |
| Pin number | 1 pole |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
