2222-1307/999-953 | WAGO

2-wire/1-pin PE basic terminal, push-in connection, 0.25-4.0 mm², 1 pole, green-yellow, 2222-1307/999-953

Order No.: 45P7800
EAN: 4066966204216
MPN:
2222-1307/999-953
Series: 2222
WAGO

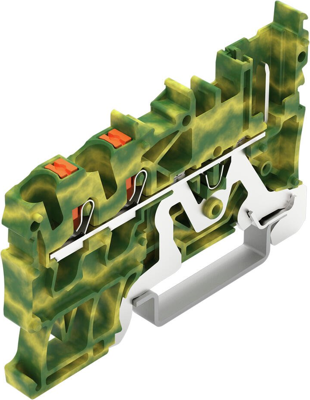

2222-1307/999-953 WAGO Series Terminals Image 1

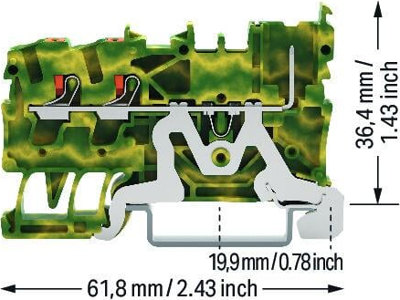

2222-1307/999-953 WAGO Series Terminals Image 2
2222-1307/999-953 WAGO Series Terminals Image 3
Image may differ
Unit Price (€ / pc.)
3.7961 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.80 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7961 €
10 pcs.
3.5343 €
50 pcs.
3.2487 €
100 pcs.
2.9512 €
*incl. VAT plus shipping costs
**Subject to prior sale

2-conductor/1-pin ground carrier terminal block, 2222-1307/999-953, WAGO

2-conductor/1-pin ground carrier terminal block with push-button, 2.5 mm², suitable for Ex nA applications, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2.50 mm², green-yellow.

Technical specifications
Connection push-in connection
Number of terminals 2
Version 2-wire/1-pin PE basic terminal
AWG cross-section AWG 22 to 12
Width 5.2 mm
Colour green-yellow
Height 61.8 mm
Cable cross-section 0.25-4.0 mm²
Pin number 1 pole
Logistics
Country of origin PL
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
