2222-1401/999-953 | WAGO
2-wire/2-pin basic terminal, push-in connection, 0.25-4.0 mm², 1 pole, gray, 2222-1401/999-953
Unit Price (€ / pc.)
2.2610 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.26 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2610 €
10 pcs.
2.1063 €
50 pcs.
1.9397 €
100 pcs.
1.7612 €
*incl. VAT plus shipping costs
**Subject to prior sale

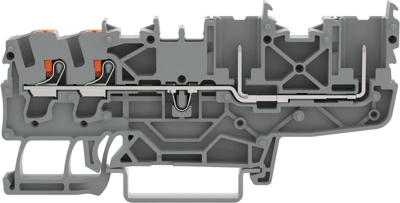

2-conductor/2-pin carrier terminal block, 2222-1401/999-953, WAGO
2-conductor/2-pin carrier terminal block with push-button, 2.5 mm², suitable for Ex nA applications, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2.50 mm², gray.
Technical specifications
| Connection | push-in connection | |
| Number of terminals | 2 | |
| Version | 2-wire/2-pin basic terminal | |
| AWG cross-section | AWG 22 to 12 | |

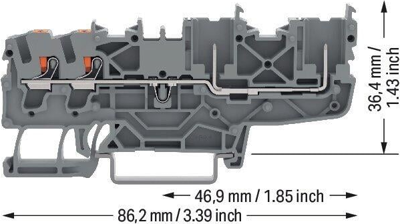

| Width | 5.2 mm | |
| Colour | gray | |
| Height | 86.2 mm | |
| Cable cross-section | 0.25-4.0 mm² | |
| Pin number | 1 pole |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
