2222-1407/999-953 | WAGO
2-wire/2-pin PE basic terminal, push-in connection, 0.25-4.0 mm², 1 pole, green-yellow, 2222-1407/999-953
Unit Price (€ / pc.)
3.9151 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.92 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9151 €
10 pcs.
3.6414 €
50 pcs.
3.3439 €
100 pcs.
3.0464 €
*incl. VAT plus shipping costs
**Subject to prior sale

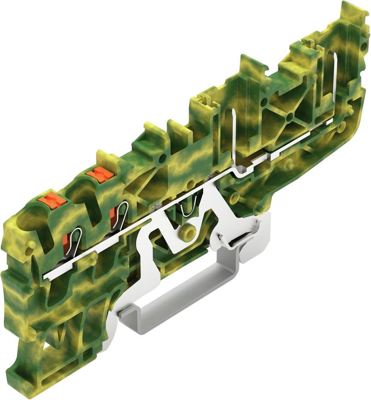

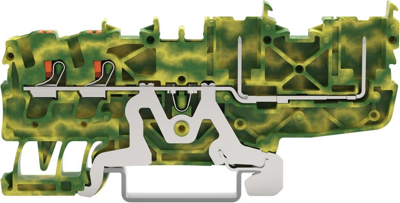

2-conductor/2-pin ground carrier terminal block, 2222-1407/999-953, WAGO
2-conductor/2-pin ground carrier terminal block with push-button, 2.5 mm², suitable for Ex nA applications, for DIN-rail 35 x 15 and 35 x 7.5, Push-in CAGE CLAMP, 2.50 mm², green-yellow.
Technical specifications
| Connection | push-in connection | |
| Number of terminals | 2 | |
| Version | 2-wire/2-pin PE basic terminal | |
| AWG cross-section | AWG 22 to 12 | |

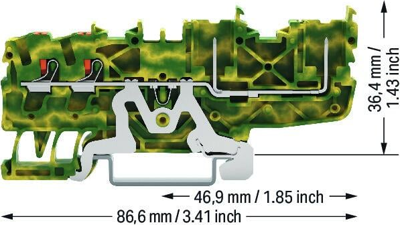

| Width | 5.2 mm | |
| Colour | green-yellow | |
| Height | 86.2 mm | |
| Cable cross-section | 0.25-4.0 mm² | |
| Pin number | 1 pole |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
