260-111 | WAGO
2-wire terminal strip, spring-clamp connection, 0.08-1.5 mm², 11 pole, 18 A, 6 kV, gray, 260-111
Unit Price (€ / pc.)
4.9504 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
4.95 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9504 €
10 pcs.
4.5577 €
50 pcs.
4.1412 €
100 pcs.
3.7366 €
*incl. VAT plus shipping costs
**Subject to prior sale

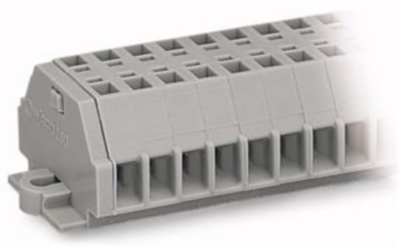

2-Conductor terminal strip, 260-111, Wago
2-wire terminal strip with mounting flanges for screw and similar types of mounting Mounting types Mounting hole Ø 3.2 mm with mounting foot 209-123 also on TS 35 11-pole gray

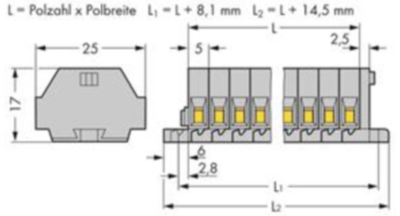

Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 22 | |
| Ausführung | 2-Leiter-Klemmenleiste | |
| AWG-Leiterquerschnitt | AWG 28 bis 16 | |
| Bemessungsspannung | 400 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 69.5 mm | |
| Farbe | grau | |
| Höhe | 17 mm | |
| Länge | 25 mm | |
| Leiterquerschnitt | 0,08-1,5 mm² | |
| Nennstrom | 18 A | |
| Polzahl | 11-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
