260-162 | WAGO
2-wire terminal strip, spring-clamp connection, 0.08-1.5 mm², 12 pole, 18 A, 6 kV, gray, 260-162
Unit Price (€ / pc.)
5.3431 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
5.34 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3431 €
10 pcs.
4.9147 €
50 pcs.
4.4744 €
100 pcs.
4.0222 €
*incl. VAT plus shipping costs
**Subject to prior sale

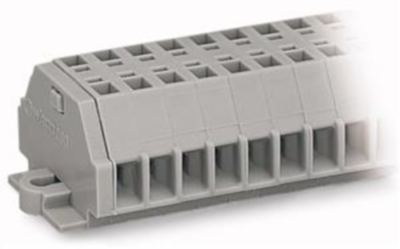

2-Conductor terminal strip, 260-162, Wago
2-conductor terminal strip with snap-in feet for sheet thickness 0.6 - 1.2 mm mounting hole Ø 3.5 mm also on aluminum rail 210-154 or with mounting foot 209-120 on TS 35 12-pin gray
Technical specifications
| Version | 2-Leiter-Klemmenleiste | |
| Number of terminals | 24 | |
| Pin number | 12-polig | |
| Cable cross-section | 0,08-1,5 mm² | |
| AWG cross-section | AWG 28 bis 16 | |
| Rated surge voltage | 6 kV | |
| Rated current | 18 A | |
| Rated Voltage | 400 V | |
| Degree of soiling | 3 | |

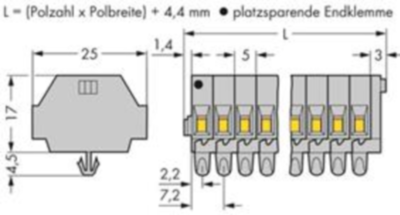

| Length | 25 mm | |
| Width | 64.4 mm | |
| Height | 17 mm | |
| Connection | Federklemmanschluss | |
| Colour | grau |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
