260-206 | WAGO
4-wire terminal strip, spring-clamp connection, 0.08-1.5 mm², 6 pole, 18 A, 6 kV, gray, 260-206
Unit Price (€ / pc.)
4.3435 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
4.34 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3435 €
10 pcs.
3.9984 €
50 pcs.
3.6295 €
100 pcs.
3.2725 €
*incl. VAT plus shipping costs
**Subject to prior sale

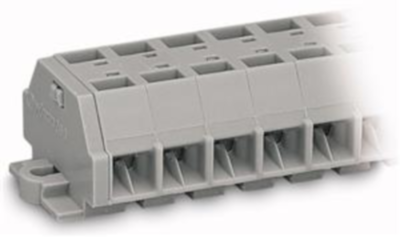

4-Conductor terminal strip, 260-206, Wago

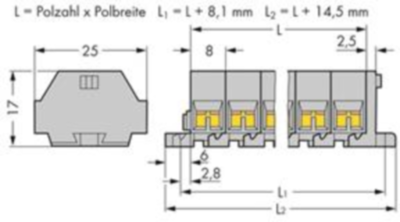

4-conductor terminal strip with mounting flanges for screw and similar types of fastening Mounting hole Ø 3.2 mm with mounting foot 209-123 also on TS 35 6-pole gray
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 24 | |
| Ausführung | 4-Leiter-Klemmenleiste | |
| AWG-Leiterquerschnitt | AWG 28 bis 16 | |
| Bemessungsspannung | 400 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 62.5 mm | |
| Farbe | grau | |
| Höhe | 17 mm | |
| Länge | 25 mm | |
| Leiterquerschnitt | 0,08-1,5 mm² | |
| Nennstrom | 18 A | |
| Polzahl | 6-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
