260-306 | WAGO

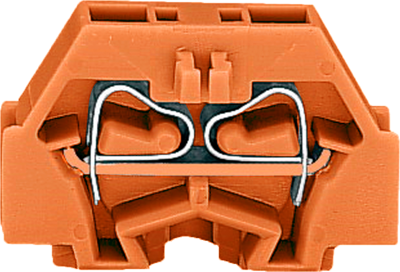

2-wire terminal, spring-clamp connection, 0.08-1.5 mm², 1 pole, 18 A, 6 kV, orange, 260-306
Unit Price (€ / pc.)
0.3689 € *
Available: 200 pcs.
Leadtime: 1 Week **
Total Price:
0.37 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3689 €
10 pcs.
0.3332 €
50 pcs.
0.2987 €
*incl. VAT plus shipping costs
**Subject to prior sale
Push-wire terminals, type Wago 260-../261-../262-.
Single-pole and 12-pole version with cage clamp terminals. The terminal strips can be expanded to increase the number of poles. The last open terminal must be covered with an end plate. The terminals are mounted either by means of a flange with 3.2-mm fastening hole diameter, or by means of interlocking socket for 3.5-mm diameter fastening holes; Certifications: VDE, UL, CSA etc.
2-wire terminals for 1 x 1.5 mm² wires on both sides, type 260-.
Grid: 5.0 mm. Rated voltage to EN: 400 V. Rated current: 18 A. Rated cross-section: 0.08 to 1.5 mm².
Type: 260–306, single–pole, with flange, orange
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 2 | |
| Version | 2-wire terminal | |
| AWG cross-section | AWG 28 to 16 | |
| Rated Voltage | 400 V | |
| Rated surge voltage | 6 kV | |
| Width | 5 mm | |
| Colour | orange | |
| Height | 17 mm | |
| Length | 25 mm | |
| Cable cross-section | 0.08-1.5 mm² | |
| Rated current | 18 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
