261-107/341-000 | WAGO
2-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 7 pole, 24 A, 6 kV, gray, 261-107/341-000
Unit Price (€ / pc.)
4.5577 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
4.56 € *
Price list
Quantity
Price per unit*
1 pcs.
4.5577 €
10 pcs.
4.2007 €
50 pcs.
3.8199 €
100 pcs.
3.4391 €
*incl. VAT plus shipping costs
**Subject to prior sale

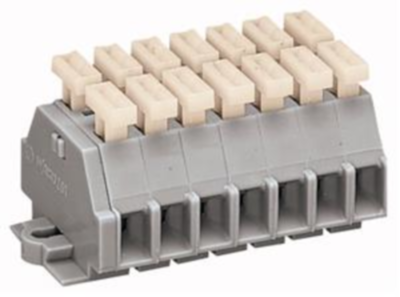

2-Conductor terminal strip, 261-107/341-000, Wago
2-wire terminal strip with push buttons on both sides with mounting flanges for screw mounting and similar. Mounting types Mounting hole Ø 3.2 mm with mounting foot 209-123 also on TS 35 7-pole gray
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 14 | |
| Ausführung | 2-Leiter-Klemmenleiste | |
| AWG-Leiterquerschnitt | AWG 28 bis 14 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 56.5 mm | |
| Farbe | grau | |
| Höhe | 23.2 mm | |
| Länge | 28 mm | |
| Leiterquerschnitt | 0,08-2,5 mm² | |
| Nennstrom | 24 A | |
| Polzahl | 7-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
