261-160 | WAGO
2-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 10 pole, 24 A, 6 kV, gray, 261-160
Unit Price (€ / pc.)
5.4026 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
5.40 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4026 €
10 pcs.
4.9623 €
50 pcs.
4.5220 €
100 pcs.
4.0698 €
*incl. VAT plus shipping costs
**Subject to prior sale
2-Conductor terminal strip, 261-160, Wago

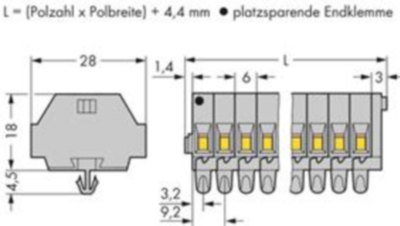

2-conductor terminal strip with snap-in feet for sheet thickness 0.6 - 1.2 mm fixing hole Ø 3.5 mm also on alu rail 210-154 or with mounting foot 209-120 on TS 35 10-pole gray
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 20 | |
| Ausführung | 2-Leiter-Klemmenleiste | |
| AWG-Leiterquerschnitt | AWG 28 bis 14 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 64.4 mm | |
| Farbe | grau | |
| Höhe | 18 mm | |
| Länge | 28 mm | |
| Leiterquerschnitt | 0,08-2,5 mm² | |
| Nennstrom | 24 A | |
| Polzahl | 10-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
