261-204 | WAGO

Name: 4-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 4 pole, 24 A, 6 kV, gray, 261-204
Brand: WAGO
SKU: 43P9438
Price: 2.52 EUR
Availability: OutOfStock

4-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 4 pole, 24 A, 6 kV, gray, 261-204

Order No.: 43P9438

EAN: 4044918612258

MPN:

261-204

Series: 261

Image may differ

Key Specification:

Ausführung 4-Leiter-Klemmenleiste

Anzahl der Klemmstellen 16

Polzahl 4-polig

Leiterquerschnitt 0,08-2,5 mm²

AWG-Leiterquerschnitt AWG 28 bis 14

Show 22 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

2.5228 € *

Available: 0 pcs.

Leadtime: 3 Weeks **

Total Price:

2.52 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

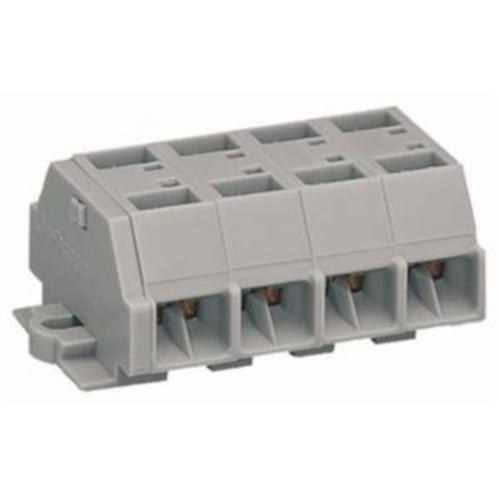

4-Conductor terminal strip, 261-204, Wago

4-wire terminal strip with mounting flanges for screw and similar types of fixing Mounting hole Ø 3.2 mm with mounting foot 209-123 also on TS 35 4-pole gray

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	85369010

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes

1 item in 22 variations

*incl. VAT plus shipping costs

4-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 2 pole, 24 A, 6 kV, gray, 261-202

Order No.:

43P9432

Manufacturer:

WAGO

Manufacturer SKU:

261-202

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 1.98 € *

1 pcs.

1.9754 €

10 pcs.

1.8207 €

50 pcs.

1.6541 €

100 pcs.

1.4875 €

34.5 mm

2-polig

0,08-2,5 mm²

4-Leiter-Klemmenleiste

500 V

28 mm

18 mm

Federklemmanschluss

grau

AWG 28 bis 14

24 A

4-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 3 pole, 24 A, 6 kV, gray, 261-203

Order No.:

43P9435

Manufacturer:

WAGO

Manufacturer SKU:

261-203

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 1.92 € *

1 pcs.

1.9159 €

44.5 mm

3-polig

0,08-2,5 mm²

4-Leiter-Klemmenleiste

500 V

28 mm

18 mm

Federklemmanschluss

grau

AWG 28 bis 14

24 A

4-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 4 pole, 24 A, 6 kV, gray, 261-204

Order No.:

43P9438

Manufacturer:

WAGO

Manufacturer SKU:

261-204

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 2.52 € *

1 pcs.

2.5228 €

54.5 mm

4-polig

0,08-2,5 mm²

4-Leiter-Klemmenleiste

500 V

28 mm

18 mm

Federklemmanschluss

grau

AWG 28 bis 14

24 A

4-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 5 pole, 24 A, 6 kV, gray, 261-205

Order No.:

43P9441

Manufacturer:

WAGO

Manufacturer SKU:

261-205

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 3.02 € *

1 pcs.

3.0226 €

64.5 mm

5-polig

0,08-2,5 mm²

4-Leiter-Klemmenleiste

500 V

28 mm

18 mm

Federklemmanschluss

grau

AWG 28 bis 14

24 A

4-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 6 pole, 24 A, 6 kV, gray, 261-206

Order No.:

43P9444

Manufacturer:

WAGO

Manufacturer SKU:

261-206

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 3.62 € *

1 pcs.

3.6176 €

74.5 mm

6-polig

0,08-2,5 mm²

4-Leiter-Klemmenleiste

500 V

28 mm

18 mm

Federklemmanschluss

grau

AWG 28 bis 14

24 A

4-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 7 pole, 24 A, 6 kV, gray, 261-207

Order No.:

43P9447

Manufacturer:

WAGO

Manufacturer SKU:

261-207

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 4.19 € *

1 pcs.

4.1888 €

84.5 mm

7-polig

0,08-2,5 mm²

4-Leiter-Klemmenleiste

500 V

28 mm

18 mm

Federklemmanschluss

grau

AWG 28 bis 14

24 A

4-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 8 pole, 24 A, 6 kV, gray, 261-208

Order No.:

43P9450

Manufacturer:

WAGO

Manufacturer SKU:

261-208

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 4.78 € *

1 pcs.

4.7838 €

94.5 mm

8-polig

0,08-2,5 mm²

4-Leiter-Klemmenleiste

500 V

28 mm

18 mm

Federklemmanschluss

grau

AWG 28 bis 14

24 A

4-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 9 pole, 24 A, 6 kV, gray, 261-209

Order No.:

43P9453

Manufacturer:

WAGO

Manufacturer SKU:

261-209

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 8.02 € *

1 pcs.

8.0206 €

10 pcs.

7.3780 €

50 pcs.

6.7116 €

100 pcs.

6.0452 €

104.5 mm

9-polig

0,08-2,5 mm²

4-Leiter-Klemmenleiste

500 V

28 mm

18 mm

Federklemmanschluss

grau

AWG 28 bis 14

24 A

4-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 10 pole, 24 A, 6 kV, gray, 261-210

Order No.:

43P9456

Manufacturer:

WAGO

Manufacturer SKU:

261-210

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 8.84 € *

1 pcs.

8.8417 €

10 pcs.

8.1277 €

50 pcs.

7.4018 €

100 pcs.

6.6521 €

114.5 mm

10-polig

0,08-2,5 mm²

4-Leiter-Klemmenleiste

500 V

28 mm

18 mm

Federklemmanschluss

grau

AWG 28 bis 14

24 A

4-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 11 pole, 24 A, 6 kV, gray, 261-211

Order No.:

43P9459

Manufacturer:

WAGO

Manufacturer SKU:

261-211

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 9.71 € *

1 pcs.

9.7104 €

10 pcs.

8.9369 €

50 pcs.

8.1277 €

100 pcs.

7.3185 €

124.5 mm

11-polig

0,08-2,5 mm²

4-Leiter-Klemmenleiste

500 V

28 mm

18 mm

Federklemmanschluss

grau

AWG 28 bis 14

24 A

4-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 12 pole, 24 A, 6 kV, gray, 261-212

Order No.:

43P9462

Manufacturer:

WAGO

Manufacturer SKU:

261-212

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 7.01 € *

1 pcs.

7.0091 €

134.5 mm

12-polig

0,08-2,5 mm²

4-Leiter-Klemmenleiste

500 V

28 mm

18 mm

Federklemmanschluss

grau

AWG 28 bis 14

24 A

4-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 2 pole, 24 A, 6 kV, gray, 261-252

Order No.:

43P9465

Manufacturer:

WAGO

Manufacturer SKU:

261-252

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 1.98 € *

1 pcs.

1.9754 €

10 pcs.

1.8207 €

50 pcs.

1.6541 €

100 pcs.

1.4875 €

24.4 mm

2-polig

0,08-2,5 mm²

4-Leiter-Klemmenleiste

500 V

28 mm

18 mm

Federklemmanschluss

grau

AWG 28 bis 14

24 A

4-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 3 pole, 24 A, 6 kV, gray, 261-253

Order No.:

43P9468

Manufacturer:

WAGO

Manufacturer SKU:

261-253

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 1.92 € *

1 pcs.

1.9159 €

34.4 mm

3-polig

0,08-2,5 mm²

4-Leiter-Klemmenleiste

500 V

28 mm

18 mm

Federklemmanschluss

grau

AWG 28 bis 14

24 A

4-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 4 pole, 24 A, 6 kV, gray, 261-254

Order No.:

43P9471

Manufacturer:

WAGO

Manufacturer SKU:

261-254

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 3.82 € *

1 pcs.

3.8199 €

10 pcs.

3.5105 €

50 pcs.

3.1892 €

100 pcs.

2.8798 €

44.4 mm

4-polig

0,08-2,5 mm²

4-Leiter-Klemmenleiste

500 V

28 mm

18 mm

Federklemmanschluss

grau

AWG 28 bis 14

24 A

4-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 5 pole, 24 A, 6 kV, gray, 261-255

Order No.:

43P9474

Manufacturer:

WAGO

Manufacturer SKU:

261-255

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 3.02 € *

1 pcs.

3.0226 €

54.4 mm

5-polig

0,08-2,5 mm²

4-Leiter-Klemmenleiste

500 V

28 mm

18 mm

Federklemmanschluss

grau

AWG 28 bis 14

24 A

4-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 6 pole, 24 A, 6 kV, gray, 261-256

Order No.:

43P9476

Manufacturer:

WAGO

Manufacturer SKU:

261-256

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 3.62 € *

1 pcs.

3.6176 €

64.4 mm

6-polig

0,08-2,5 mm²

4-Leiter-Klemmenleiste

500 V

28 mm

18 mm

Federklemmanschluss

grau

AWG 28 bis 14

24 A

4-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 7 pole, 24 A, 6 kV, gray, 261-257

Order No.:

43P9479

Manufacturer:

WAGO

Manufacturer SKU:

261-257

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 4.19 € *

1 pcs.

4.1888 €

74.4 mm

7-polig

0,08-2,5 mm²

4-Leiter-Klemmenleiste

500 V

28 mm

18 mm

Federklemmanschluss

grau

AWG 28 bis 14

24 A

4-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 8 pole, 24 A, 6 kV, gray, 261-258

Order No.:

43P9482

Manufacturer:

WAGO

Manufacturer SKU:

261-258

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 4.78 € *

1 pcs.

4.7838 €

84.4 mm

8-polig

0,08-2,5 mm²

4-Leiter-Klemmenleiste

500 V

28 mm

18 mm

Federklemmanschluss

grau

AWG 28 bis 14

24 A

4-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 9 pole, 24 A, 6 kV, gray, 261-259

Order No.:

43P9485

Manufacturer:

WAGO

Manufacturer SKU:

261-259

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 5.31 € *

1 pcs.

5.3074 €

94.4 mm

9-polig

0,08-2,5 mm²

4-Leiter-Klemmenleiste

500 V

28 mm

18 mm

Federklemmanschluss

grau

AWG 28 bis 14

24 A

4-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 10 pole, 24 A, 6 kV, gray, 261-260

Order No.:

43P9488

Manufacturer:

WAGO

Manufacturer SKU:

261-260

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 8.84 € *

1 pcs.

8.8417 €

10 pcs.

8.1277 €

50 pcs.

7.4018 €

100 pcs.

6.6521 €

104.4 mm

10-polig

0,08-2,5 mm²

4-Leiter-Klemmenleiste

500 V

28 mm

18 mm

Federklemmanschluss

grau

AWG 28 bis 14

24 A

On our category pages and product pages you will find the following green symbols:

Available via download:

Schematic symbols
PCB footprints
3D models

Schematic symbols and PCB footprints are available

Available via download:

Schematic symbols
PCB footprints

No models are currently available

Circuit diagram symbols and PCB footprint can be requested by clicking on the icon for the respective product.

Country	Runtime days	Freight excl. VAT	Freight incl. VAT
Germany	1	6,90 €	8,21 €
Austria	1-2	8,30 €	9,96 €
Switzerland	1-2	16,40 €	19,52 €

	Anschluss	Federklemmanschluss
	Anzahl der Klemmstellen	16
	Ausführung	4-Leiter-Klemmenleiste
	AWG-Leiterquerschnitt	AWG 28 bis 14
	Bemessungsspannung	500 V
	Bemessungsstoßspannung	6 kV
	Breite	54.5 mm
	Farbe	grau
	Höhe	18 mm
	Länge	28 mm
	Leiterquerschnitt	0,08-2,5 mm²
	Nennstrom	24 A
	Polzahl	4-polig
	Verschmutzungsgrad	3
