261-212/332-000 | WAGO

4-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 12 pole, 24 A, 6 kV, gray, 261-212/332-000

Order No.: 43P9463
EAN: 4044918613071
MPN:
261-212/332-000
Series: 261

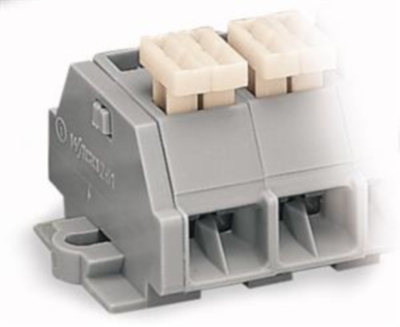

261-212/332-000 WAGO Series Terminals Image 1

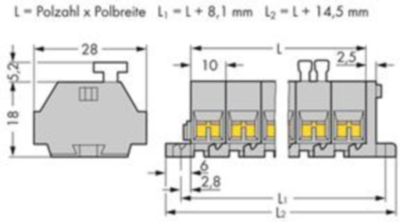

261-212/332-000 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
7.6517 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
7.65 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
7.6517 €

4-Conductor terminal strip, 261-212/332-000, Wago

4-wire terminal strip on one side with push buttons with mounting flanges for screw terminals etc. Mounting hole Ø 3.2 mm with mounting foot 209-123 also on TS 35 12-pole gray

Technical specifications
Anschluss Federklemmanschluss
Anzahl der Klemmstellen 48
Ausführung 4-Leiter-Klemmenleiste
AWG-Leiterquerschnitt AWG 28 bis 14
Bemessungsspannung 500 V
Bemessungsstoßspannung 6 kV
Breite 134.5 mm
Farbe grau
Höhe 23.2 mm
Länge 28 mm
Leiterquerschnitt 0,08-2,5 mm²
Nennstrom 24 A
Polzahl 12-polig
Verschmutzungsgrad 3
Logistics
Ursprungsland DE
Zolltarifnummer 85369010
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
