261-303 | WAGO
2-wire terminal, spring-clamp connection, 0.08-2.5 mm², 1 pole, 24 A, 6 kV, light gray, 261-303
Unit Price (€ / pc.)
0.5355 € *
Available: 30 pcs.
Leadtime: 4 Weeks **
Total Price:
0.54 € *
Price list
Quantity
Price per unit*
1 pcs.
0.5355 €
10 pcs.
0.4879 €
50 pcs.
0.4522 €
100 pcs.
0.4046 €
*incl. VAT plus shipping costs
**Subject to prior sale

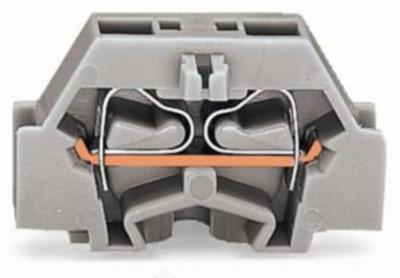

2-Conductor terminal block, 261-303, Wago
2-wire terminal block with mounting flange for screw mounting and similar. Mounting hole Ø 3.2 mm with mounting foot 209-123 also on TS 35 light gray
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | 2-Leiter-Klemme | |
| AWG-Leiterquerschnitt | AWG 28 bis 14 | |
| Bemessungsspannung | 500 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 6 mm | |
| Farbe | lichtgrau | |
| Höhe | 18 mm | |
| Länge | 28 mm | |
| Leiterquerschnitt | 0,08-2,5 mm² | |
| Nennstrom | 24 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | CH |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
