261-357 | WAGO
4-wire end terminal, spring-clamp connection, 0.08-2.5 mm², 1 pole, 24 A, 6 kV, yellow/green, 261-357
Unit Price (€ / pc.)
0.9401 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
0.94 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9401 €
10 pcs.
0.8687 €
50 pcs.
0.7854 €
100 pcs.
0.7140 €
*incl. VAT plus shipping costs
**Subject to prior sale

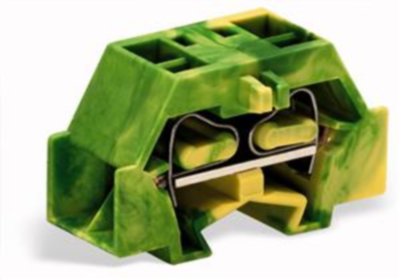

4-Conductor space saving, 261-357, Wago
Space-saving 4-conductor end terminal without protruding snap-in foot for terminal strips with snap-in feet green-yellow
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 4 | |
| Version | 4-wire end terminal | |
| AWG cross-section | AWG 28 to 14 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 10 mm | |
| Colour | yellow/green | |
| Height | 18 mm | |
| Length | 28 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated current | 24 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
