261-430 | WAGO
2-wire terminal strip, spring-clamp connection, 0.08-2.5 mm², 10 pole, 24 A, 6 kV, gray, 261-430
Unit Price (€ / pc.)
5.4026 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
5.40 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4026 €
10 pcs.
4.9623 €
50 pcs.
4.5220 €
100 pcs.
4.0698 €
*incl. VAT plus shipping costs
**Subject to prior sale

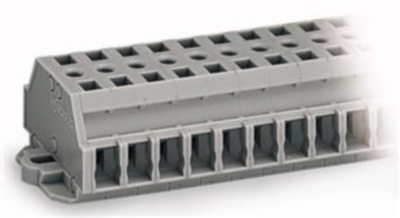

2-Conductor terminal strip, 261-430, Wago
2-wire terminal strip with mounting flanges for screw-type and similar mounting types Mounting hole Ø 3.2 mm with mounting foot 209-123 also on TS 35 without actuating lever 10-pole gray

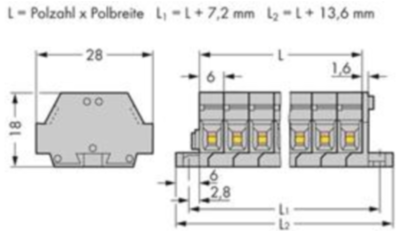

Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 20 | |
| Version | 2-wire terminal strip | |
| AWG cross-section | AWG 28 to 14 | |
| Rated Voltage | 500 V | |
| Rated surge voltage | 6 kV | |
| Width | 73.6 mm | |
| Colour | gray | |
| Height | 18 mm | |
| Length | 28 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated current | 24 A | |
| Pin number | 10 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
