262-334 | WAGO
4-wire terminal, spring-clamp connection, 0.08-4.0 mm², 1 pole, 32 A, 8 kV, blue, 262-334
Unit Price (€ / pc.)
1.4399 € *
Available: 20 pcs.
Leadtime: On Request **
Total Price:
1.44 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4399 €
10 pcs.
1.3209 €
50 pcs.
1.2019 €
100 pcs.
1.0829 €
*incl. VAT plus shipping costs
**Subject to prior sale

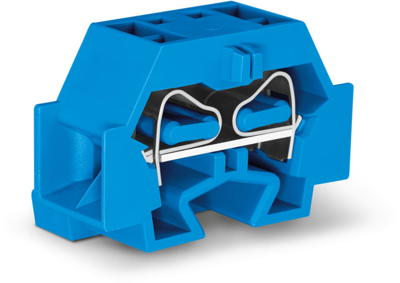

Terminal block, 262-334, WAGO
4-conductor terminal block, without push-buttons, suitable for Ex i applications, with fixing flange, 1-pole, for screw or similar mounting types, Fixing hole 3.2 mm Ø, 4 mm², CAGE CLAMP, 4,00 mm², blue.
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 4 | |
| Version | 4-wire terminal | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 630 V | |
| Rated surge voltage | 8 kV | |
| Width | 12 mm | |
| Colour | blue | |
| Height | 23 mm | |
| Length | 33.5 mm | |
| Cable cross-section | 0.08-4.0 mm² | |
| Rated current | 32 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
