264-220 | WAGO
4 wire mini through terminal, spring-clamp connection, 0.5-2.5 mm², 1 pole, 23 A, light gray, 264-220
Unit Price (€ / pc.)
1.5351 € *
Available: 50 pcs.
Leadtime: On Request **
Total Price:
1.54 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5351 €
10 pcs.
1.4161 €
50 pcs.
1.2852 €
100 pcs.
1.1543 €
*incl. VAT plus shipping costs
**Subject to prior sale

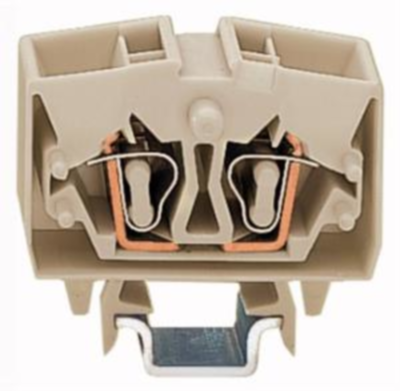

Miniature through terminal block, 264-220, WAGO
4-conductor miniature through terminal block, 2.5 mm², with test option, suitable for Ex e II applications, center marking, for DIN-15 rail, CAGE CLAMP, 2,50 mm², light gray.
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 4 | |
| Version | 4 wire mini through terminal | |
| AWG cross-section | AWG 20 to 12 | |
| Rated Voltage | 690 V | |
| Width | 10 mm | |
| Colour | light gray | |
| Height | 32 mm | |
| Length | 24.5 mm | |
| Cable cross-section | 0.5-2.5 mm² | |
| Rated current | 23 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
