270-570/281-434 | WAGO
4-wire initiator terminal, spring-clamp connection, 0.08-2.5 mm², 4 pole, 18 A, gray, 270-570/281-434
Unit Price (€ / pc.)
8.9012 € *
Available: 0 pcs.
Leadtime: On Request **

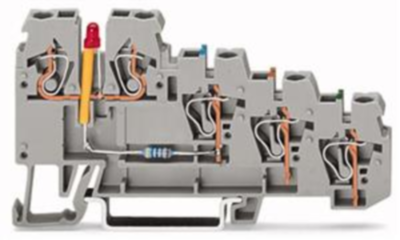

4-Conductor sensor terminal block, 270-570/281-434, Wago

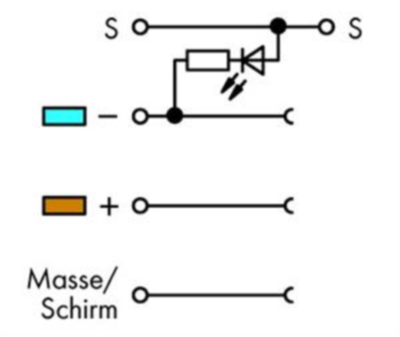

4-wire proximity switch LED terminal for PNP (plus) switching proximity switches LED red DC 24 V gray
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 5 | |
| Version | 4-wire initiator terminal | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 24 V | |
| Width | 5 mm | |
| Colour | gray | |
| Height | 83 mm | |
| Length | 39 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated current | 18 A | |
| Pin number | 4 pole |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
