280-502/281-613 | WAGO

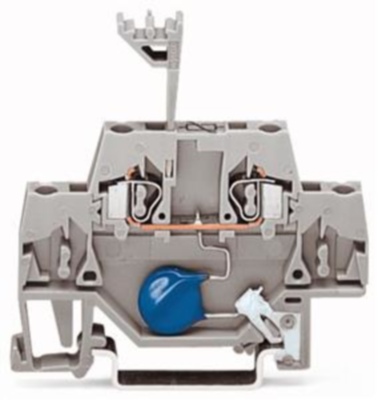

Double-decker component terminal block with varistor, spring-clamp connection, 0.08-2.5 mm², 1 pole, 20 A, gray, 280-502/281-613
Unit Price (€ / pc.)
10.7933 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Component terminal block, 280-502/281-613, WAGO
Component terminal block, double-deck, with varistor, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², CAGE CLAMP, 2,50 mm², gray.
Features
- Protect your system against overvoltage
- Slim, space-saving design
- Control operational costs by preventing expensive, unplanned downtime
- High operational reliability and system uptime
Technical specifications
| Connection | Federklemmanschluss | |
| Number of terminals | 2 | |
| Version | Doppelstock-Bauelementklemme mit Varistor | |
| AWG cross-section | AWG 28 bis 14 | |
| Rated Voltage | 24 V | |
| Width | 5 mm | |
| Colour | grau | |
| Height | 58.5 mm | |
| Length | 64 mm | |
| Cable cross-section | 0,08-2,5 mm² | |
| Rated current | 20 A | |
| Pin number | 1-polig |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 49119900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
