280-527 | WAGO

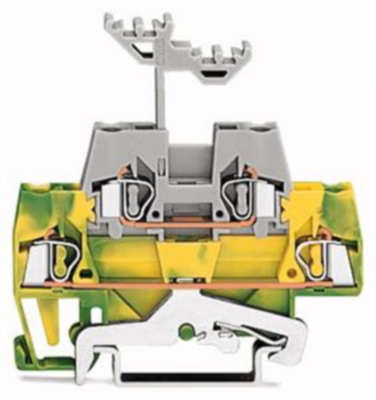

Name: Double level terminal, spring-clamp connection, 0.08-2.5 mm², 2 pole, 20 A, 6 kV, green/yellow/gray, 280-527
Brand: WAGO
SKU: 44P0594
Price: 4.30 EUR
Availability: OutOfStock

Double level terminal, spring-clamp connection, 0.08-2.5 mm², 2 pole, 20 A, 6 kV, green/yellow/gray, 280-527

Order No.: 44P0594

EAN: 4045454093952

MPN:

280-527

Series: 280

Image may differ

Key Specification:

Ausführung Doppelstockklemme

Anzahl der Klemmstellen 4

Polzahl 2-polig

Leiterquerschnitt 0,08-2,5 mm²

AWG-Leiterquerschnitt AWG 28 bis 12

Show 16 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

4.2959 € *

Available: 0 pcs.

Leadtime: 4 Weeks **

Add to Cart

Total Price:

4.30 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Double-deck terminal block, 280-527, WAGO

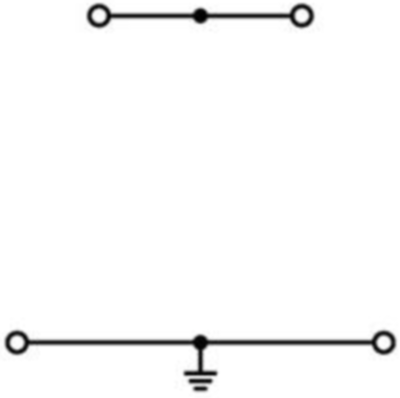

Double-deck terminal block, Ground conductor/through terminal block, 2.5 mm², with marker carrier, for DIN-rail 35 x 15 and 35 x 7.5, CAGE CLAMP, 2,50 mm², green-yellow/gray.

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Technisches Datenblatt - DE Technisches Datenblatt

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	DE
Zolltarifnummer	85369010

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	No
Substanz Beschreibung	Blei

1 item in 16 variations

*incl. VAT plus shipping costs

Feed-through/feed-through terminal block, spring-clamp connection, 0.08-2.5 mm², 2 pole, 20 A, 6 kV, gray, 280-519

Order No.:

09H7630

Manufacturer:

WAGO

Manufacturer SKU:

280-519

Available: 26 pcs. Leadtime: 10 Weeks **

Total Price: 2.87 € *

1 pcs.

2.8679 €

10 pcs.

2.6418 €

50 pcs.

2.4038 €

100 pcs.

2.1658 €

Durchgangs-/Durchgangsklemme

500 V

58.5 mm

2-polig

64 mm

grau

20 A

0,08-2,5 mm²

5 mm

Federklemmanschluss

AWG 28 bis 12

Feed-through/feed-through terminal block, spring-clamp connection, 0.08-2.5 mm², 2 pole, 20 A, 6 kV, gray, 280-520

Order No.:

09H7640

Manufacturer:

WAGO

Manufacturer SKU:

280-520

Available: 10 pcs. Leadtime: 10 Weeks **

Total Price: 3.09 € *

1 pcs.

3.0940 €

10 pcs.

2.8441 €

50 pcs.

2.5942 €

100 pcs.

2.3324 €

Durchgangs-/Durchgangsklemme

500 V

58.5 mm

2-polig

74 mm

grau

20 A

0,08-2,5 mm²

5 mm

Federklemmanschluss

AWG 28 bis 12

Feed-through/feed-through terminal block, spring-clamp connection, 0.08-2.5 mm², 2 pole, 20 A, 6 kV, gray/blue, 280-524

Order No.:

44P0591

Manufacturer:

WAGO

Manufacturer SKU:

280-524

Available: 40 pcs. Leadtime: 10 Weeks **

Total Price: 3.17 € *

1 pcs.

3.1654 €

10 pcs.

2.9036 €

50 pcs.

2.6418 €

100 pcs.

2.3800 €

Durchgangs-/Durchgangsklemme

500 V

58.5 mm

2-polig

74 mm

grau/blau

20 A

0,08-2,5 mm²

5 mm

Federklemmanschluss

AWG 28 bis 12

Feed-through/feed-through terminal block, spring-clamp connection, 0.08-2.5 mm², 2 pole, 20 A, 6 kV, blue, 280-530

Order No.:

44P0597

Manufacturer:

WAGO

Manufacturer SKU:

280-530

Available: 39 pcs. Leadtime: 10 Weeks **

Total Price: 3.22 € *

1 pcs.

3.2249 €

10 pcs.

2.9631 €

50 pcs.

2.7013 €

100 pcs.

2.4276 €

Durchgangs-/Durchgangsklemme

500 V

58.5 mm

2-polig

74 mm

blau

20 A

0,08-2,5 mm²

5 mm

Federklemmanschluss

AWG 28 bis 12

Feed-through/feed-through terminal block, spring-clamp connection, 0.08-2.5 mm², 2 pole, 20 A, 6 kV, gray, 280-513

Order No.:

09P0092

Manufacturer:

WAGO

Manufacturer SKU:

280-513

Available: 0 pcs. Leadtime: 10 Weeks **

Total Price: 2.99 € *

1 pcs.

2.9869 €

10 pcs.

2.7489 €

50 pcs.

2.4990 €

100 pcs.

2.2491 €

Durchgangs-/Durchgangsklemme

500 V

58.5 mm

2-polig

84 mm

grau

20 A

0,08-2,5 mm²

5 mm

Federklemmanschluss

AWG 28 bis 12

4-wire protective earth terminal, spring-clamp connection, 0.08-2.5 mm², 1 pole, 20 A, 6 kV, yellow/green, 280-517

Order No.:

44P0587

Manufacturer:

WAGO

Manufacturer SKU:

280-517

Available: 0 pcs. Leadtime: 3 Weeks **

Total Price: 5.75 € *

1 pcs.

5.7477 €

4-Leiter-Schutzleiterklemme

300 V

58.5 mm

1-polig

64 mm

gelb/grün

20 A

0,08-2,5 mm²

5 mm

Federklemmanschluss

AWG 28 bis 12

Feed-through/feed-through terminal block, spring-clamp connection, 0.08-2.5 mm², 3 pole, 10 A, 6 kV, gray, 280-522

Order No.:

44P0589

Manufacturer:

WAGO

Manufacturer SKU:

280-522

Available: 0 pcs. Leadtime: 4 Weeks **

Total Price: 4.62 € *

1 pcs.

4.6172 €

10 pcs.

4.2483 €

50 pcs.

3.8675 €

100 pcs.

3.4748 €

Durchgangs-/Durchgangsklemme

400 V

81.5 mm

3-polig

74 mm

grau

10 A

0,08-2,5 mm²

5 mm

Federklemmanschluss

AWG 28 bis 12

Feed-through/feed-through terminal block, spring-clamp connection, 0.08-2.5 mm², 2 pole, 20 A, 6 kV, gray/blue, 280-523

Order No.:

44P0590

Manufacturer:

WAGO

Manufacturer SKU:

280-523

Available: 0 pcs. Leadtime: 10 Weeks **

Total Price: 3.02 € *

1 pcs.

3.0226 €

10 pcs.

2.7846 €

50 pcs.

2.5347 €

100 pcs.

2.2729 €

Durchgangs-/Durchgangsklemme

500 V

58.5 mm

2-polig

64 mm

grau/blau

20 A

0,08-2,5 mm²

5 mm

Federklemmanschluss

AWG 28 bis 12

Double level terminal, spring-clamp connection, 0.08-2.5 mm², 2 pole, 20 A, 6 kV, green/yellow/gray, 280-527

Order No.:

44P0594

Manufacturer:

WAGO

Manufacturer SKU:

280-527

Available: 0 pcs. Leadtime: 4 Weeks **

Total Price: 4.30 € *

1 pcs.

4.2959 €

Doppelstockklemme

500 V

58.5 mm

2-polig

64 mm

grün/gelb/grau

20 A

0,08-2,5 mm²

5 mm

Federklemmanschluss

AWG 28 bis 12

Feed-through/feed-through terminal block, spring-clamp connection, 0.08-2.5 mm², 2 pole, 20 A, 6 kV, blue, 280-529

Order No.:

44P0596

Manufacturer:

WAGO

Manufacturer SKU:

280-529

Available: 0 pcs. Leadtime: 10 Weeks **

Total Price: 3.15 € *

1 pcs.

3.1535 €

10 pcs.

2.9036 €

50 pcs.

2.6418 €

100 pcs.

2.3800 €

Durchgangs-/Durchgangsklemme

500 V

58.5 mm

2-polig

64 mm

blau

20 A

0,08-2,5 mm²

5 mm

Federklemmanschluss

AWG 28 bis 12

Feed-through/feed-through terminal block, spring-clamp connection, 0.08-2.5 mm², 2 pole, 20 A, 6 kV, gray/blue, 280-533

Order No.:

44P0600

Manufacturer:

WAGO

Manufacturer SKU:

280-533

Available: 0 pcs. Leadtime: 4 Weeks **

Total Price: 3.02 € *

1 pcs.

3.0226 €

10 pcs.

2.7846 €

50 pcs.

2.5347 €

100 pcs.

2.2729 €

Durchgangs-/Durchgangsklemme

500 V

58.5 mm

2-polig

64 mm

grau/blau

20 A

0,08-2,5 mm²

5 mm

Federklemmanschluss

AWG 28 bis 12

Feed-through/feed-through terminal block, spring-clamp connection, 0.08-2.5 mm², 2 pole, 20 A, 6 kV, gray/blue, 280-534

Order No.:

44P0601

Manufacturer:

WAGO

Manufacturer SKU:

280-534

Available: 0 pcs. Leadtime: 4 Weeks **

Total Price: 3.28 € *

1 pcs.

3.2844 €

10 pcs.

3.0226 €

50 pcs.

2.7489 €

100 pcs.

2.4752 €

Durchgangs-/Durchgangsklemme

500 V

58.5 mm

2-polig

74 mm

grau/blau

20 A

0,08-2,5 mm²

5 mm

Federklemmanschluss

AWG 28 bis 12

Double level terminal, spring-clamp connection, 0.08-2.5 mm², 2 pole, 20 A, 6 kV, yellow/green/blue, 280-537

Order No.:

44P0602

Manufacturer:

WAGO

Manufacturer SKU:

280-537

Available: 0 pcs. Leadtime: 4 Weeks **

Total Price: 4.36 € *

1 pcs.

4.3554 €

Doppelstockklemme

500 V

58.5 mm

2-polig

64 mm

gelb/grün/blau

20 A

0,08-2,5 mm²

5 mm

Federklemmanschluss

AWG 28 bis 12

Feed-through/feed-through terminal block, spring-clamp connection, 0.08-2.5 mm², 2 pole, 20 A, 6 kV, gray, 280-541

Order No.:

44P0603

Manufacturer:

WAGO

Manufacturer SKU:

280-541

Available: 0 pcs. Leadtime: 10 Weeks **

Total Price: 3.43 € *

1 pcs.

3.4272 €

10 pcs.

3.1535 €

50 pcs.

2.8679 €

100 pcs.

2.5823 €

Durchgangs-/Durchgangsklemme

500 V

70.5 mm

2-polig

64 mm

grau

20 A

0,08-2,5 mm²

5 mm

Federklemmanschluss

AWG 28 bis 12

Feed-through/feed-through terminal block, spring-clamp connection, 0.08-2.5 mm², 2 pole, 20 A, 6 kV, gray, 280-542

Order No.:

44P0604

Manufacturer:

WAGO

Manufacturer SKU:

280-542

Available: 0 pcs. Leadtime: 4 Weeks **

Total Price: 3.67 € *

1 pcs.

3.6652 €

10 pcs.

3.3796 €

50 pcs.

3.0702 €

100 pcs.

2.7608 €

Durchgangs-/Durchgangsklemme

500 V

70.5 mm

2-polig

64 mm

grau

20 A

0,08-2,5 mm²

5 mm

Federklemmanschluss

AWG 28 bis 12

Feed-through/feed-through terminal block, spring-clamp connection, 0.08-2.5 mm², 2 pole, 20 A, 6 kV, gray, 280-543

Order No.:

44P0605

Manufacturer:

WAGO

Manufacturer SKU:

280-543

Available: 0 pcs. Leadtime: 10 Weeks **

Total Price: 3.22 € *

1 pcs.

3.2249 €

10 pcs.

2.9631 €

50 pcs.

2.7013 €

100 pcs.

2.4276 €

Durchgangs-/Durchgangsklemme

500 V

58.5 mm

2-polig

95 mm

grau

20 A

0,08-2,5 mm²

5 mm

Federklemmanschluss

AWG 28 bis 12

On our category pages and product pages you will find the following green symbols:

Available via download:

Schematic symbols
PCB footprints
3D models

Schematic symbols and PCB footprints are available

Available via download:

Schematic symbols
PCB footprints

No models are currently available

Circuit diagram symbols and PCB footprint can be requested by clicking on the icon for the respective product.

Country	Runtime days	Freight excl. VAT	Freight incl. VAT
Germany	1	6,90 €	8,21 €
Austria	1-2	8,30 €	9,96 €
Switzerland	1-2	16,40 €	19,52 €

	Anschluss	Federklemmanschluss
	Anzahl der Klemmstellen	4
	Ausführung	Doppelstockklemme
	AWG-Leiterquerschnitt	AWG 28 bis 12
	Bemessungsspannung	500 V
	Bemessungsstoßspannung	6 kV
	Breite	5 mm
	Farbe	grün/gelb/grau
	Höhe	64 mm
	Länge	58.5 mm
	Leiterquerschnitt	0,08-2,5 mm²
	Nennstrom	20 A
	Polzahl	2-polig
	Verschmutzungsgrad	3
