280-564 | WAGO
3-wire initiator supply terminal, spring-clamp connection, 0.08-2.5 mm², 2 pole, 20 A, 6 kV, gray, 280-564
Unit Price (€ / pc.)
3.2249 € *
Available: 2 pcs.
Leadtime: 1 Week **
Total Price:
3.22 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2249 €
10 pcs.
2.9631 €
50 pcs.
2.7013 €
100 pcs.
2.4276 €
*incl. VAT plus shipping costs
**Subject to prior sale

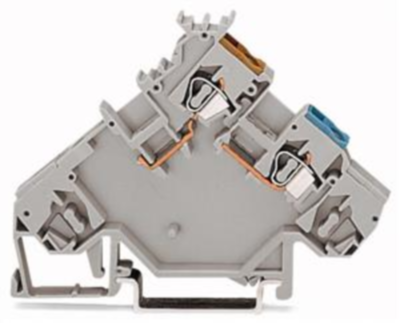

3-Conductor initiator power terminal block, 280-564, Wago
Proximity switch power terminal Supply on proximity switch side gray
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 2 | |
| Version | 3-wire initiator supply terminal | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 400 V | |
| Rated surge voltage | 6 kV | |
| Width | 5 mm | |
| Colour | gray | |
| Height | 80 mm | |
| Length | 55.5 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated current | 20 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
