280-577 | WAGO
4-wire initiator supply terminal, spring-clamp connection, 0.08-2.5 mm², 3 pole, 20 A, 6 kV, gray, 280-577
Unit Price (€ / pc.)
7.6041 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
7.60 € *
Price list
Quantity
Price per unit*
1 pcs.
7.6041 €
10 pcs.
6.9972 €
50 pcs.
6.3665 €
100 pcs.
5.7239 €
*incl. VAT plus shipping costs
**Subject to prior sale

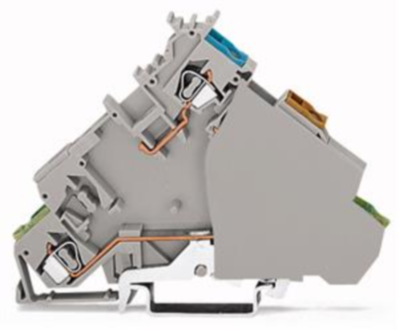

4-Conductor initiator power terminal block, 280-577, Wago

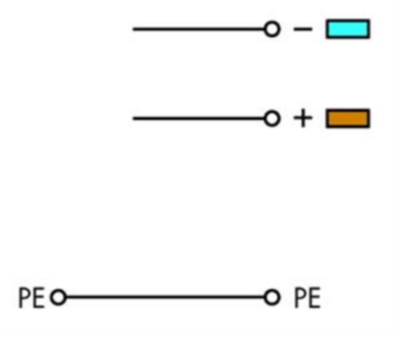

Initiator feed terminal with PE connection Feed-in on control cabinet side with end plate for 3-wire initiators and PE connection gray
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 4 | |
| Ausführung | 4-Leiter-Initiatoreneinspeiseklemme | |
| AWG-Leiterquerschnitt | AWG 28 bis 12 | |
| Bemessungsspannung | 400 V | |
| Bemessungsstoßspannung | 6 kV | |
| Breite | 6 mm | |
| Farbe | grau | |
| Höhe | 90.5 mm | |
| Länge | 63.5 mm | |
| Leiterquerschnitt | 0,08-2,5 mm² | |
| Nennstrom | 20 A | |
| Polzahl | 3-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
