280-583 | WAGO
3-wire actuator terminal, spring-clamp connection, 0.08-2.5 mm², 3 pole, 20 A, 6 kV, gray, 280-583
Unit Price (€ / pc.)
4.046 € *
Available: 0 pcs.
Leadtime: On Request **

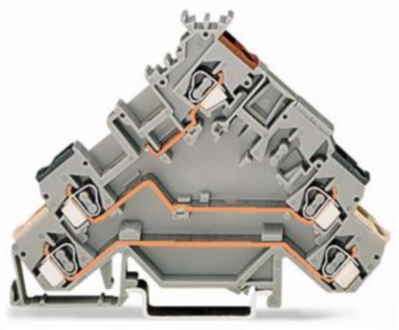

3-Conductor actuator supply terminal block, 280-583, Wago
Actuator terminal block with screen conductor continuity for actuators with screen conductor continuity for thermoswitches gray
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 5 | |
| Version | 3-wire actuator terminal | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 400 V | |
| Rated surge voltage | 6 kV | |
| Width | 5 mm | |
| Colour | gray | |
| Height | 90.5 mm | |
| Length | 63.5 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated current | 20 A | |
| Pin number | 3 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
