280-584/281-483 | WAGO
4-wire initiator supply terminal, spring-clamp connection, 0.08-2.5 mm², 2 pole, 20 A, gray, 280-584/281-483
Unit Price (€ / pc.)
7.3185 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
7.32 € *
Price list
Quantity
Price per unit*
1 pcs.
7.3185 €
10 pcs.
6.7354 €
50 pcs.
6.1285 €
100 pcs.
5.5097 €
*incl. VAT plus shipping costs
**Subject to prior sale

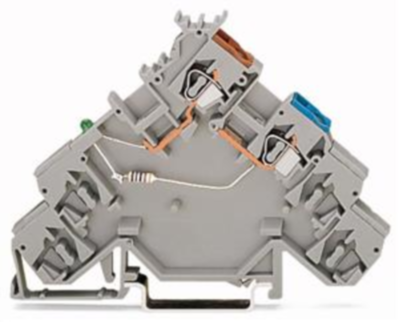

4-Conductor sensor supply terminal block, 280-584/281-483, Wago

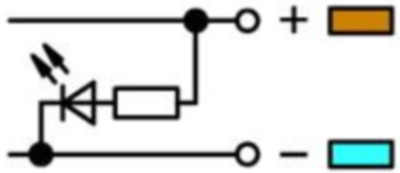

Proximity switch LED feed terminal Feed-in on the proximity switch side for PNP (plus)-switching proximity switches LED green DC 24 V gray
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | 4-Leiter-Initiatoreneinspeiseklemme | |
| AWG-Leiterquerschnitt | AWG 28 bis 12 | |
| Bemessungsspannung | 24 V | |
| Breite | 5 mm | |
| Farbe | grau | |
| Höhe | 90.5 mm | |
| Länge | 63.5 mm | |
| Leiterquerschnitt | 0,08-2,5 mm² | |
| Nennstrom | 20 A | |
| Polzahl | 2-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
