280-638 | WAGO
2 conductor basic terminal block, spring-clamp connection, 0.08-2.5 mm², 8 pole, 10 A, 6 kV, gray, 280-638
Unit Price (€ / pc.)
8.5918 € *
Available: 0 pcs.
Leadtime: On Request **

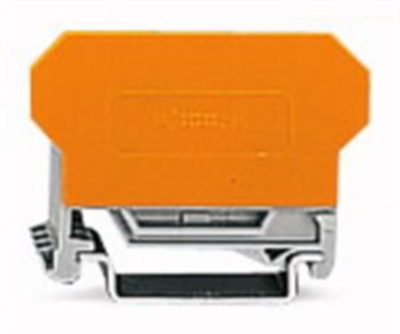

Terminal block, 280-638, WAGO
Terminal block for pluggable modules, 8-pole, with 2-conductor terminal blocks, with orange separator, for DIN-rail 35 x 15 and 35 x 7.5, 2.5 mm², CAGE CLAMP, 2,50 mm², gray.
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 2 | |
| Version | 2 conductor basic terminal block | |
| AWG cross-section | AWG 28 to 14 | |
| Rated Voltage | 400 V | |
| Rated surge voltage | 6 kV | |
| Width | 22 mm | |
| Colour | gray | |
| Height | 28 mm | |
| Length | 50 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated current | 10 A | |
| Pin number | 8 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
