280-649 | WAGO
4-wire disconnect and measuring terminal, spring-clamp connection, 0.08-2.5 mm², 2 pole, 10 A, 6 kV, gray, 280-649
Unit Price (€ / pc.)
5.0099 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.01 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0099 €
10 pcs.
4.6053 €
50 pcs.
4.1888 €
100 pcs.
3.7723 €
*incl. VAT plus shipping costs
**Subject to prior sale

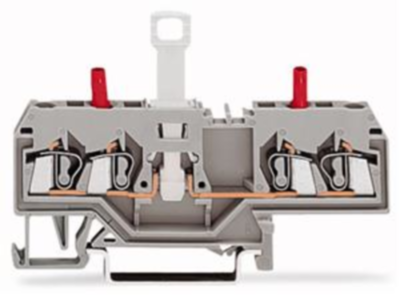

4-Conductor disconnect/test terminal block, 280-649, Wago
4-wire disconnect and measuring terminal; without swiveling disconnect blade; with touch-proof test sockets; test socket red; for mounting rail 35 x 15 and 35 x 7.5; 2.5 mm²; CAGE CLAMP®; 2.50 mm²; gray
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 2 | |
| Version | 4-wire disconnect and measuring terminal | |
| AWG cross-section | AWG 28 to 12 | |
| Rated Voltage | 400 V | |
| Rated surge voltage | 6 kV | |
| Width | 5 mm | |
| Colour | gray | |
| Height | 53 mm | |
| Length | 52.5 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated current | 10 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
