280-868 | WAGO

2-wire disconnect and measuring terminal, spring-clamp connection, 0.08-2.5 mm², 2 pole, 16 A, 6 kV, gray, 280-868

Order No.: 44P0783
EAN: 4050821014553
MPN:
280-868
Series: 280
WAGO

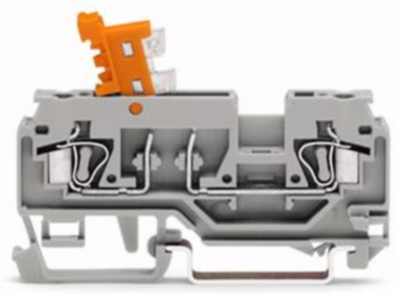

280-868 WAGO Series Terminals Image 1
280-868 WAGO Series Terminals Image 2
Image may differ
Unit Price (€ / pc.)
2.4395 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
2.44 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2.4395 €

2-wire disconnect and measuring terminal block, 280-868, Wago

2-wire disconnect and measuring terminal with swivel disconnect blade Disconnect blade holder gray with test opening for test plugs Ø 2 mm and Ø 2.3 mm gray

Technical specifications
Connection spring-clamp connection
Number of terminals 2
Version 2-wire disconnect and measuring terminal
AWG cross-section AWG 28 to 12
Rated Voltage 400 V
Rated surge voltage 6 kV
Width 5 mm
Colour gray
Height 69.5 mm
Length 28.5 mm
Cable cross-section 0.08-2.5 mm²
Rated current 16 A
Pin number 2 pole
Degree of soiling 3
Logistics
Country of origin CN
Customs tariff number 85365080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
