280-915/281-410 | WAGO
2 conductor component terminal with diode 1N4007, spring-clamp connection, 0.08-2.5 mm², 1 pole, 500 mA, gray, 280-915/281-410
Unit Price (€ / pc.)
2.9631 € *
Available: 0 pcs.
Leadtime: On Request **

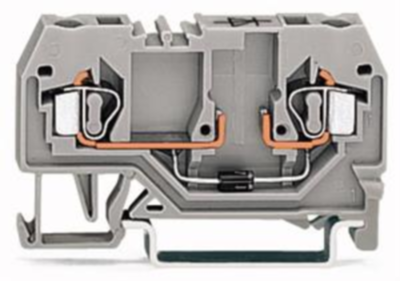

2-Conductor diode terminal, 280-915/281-410, Wago

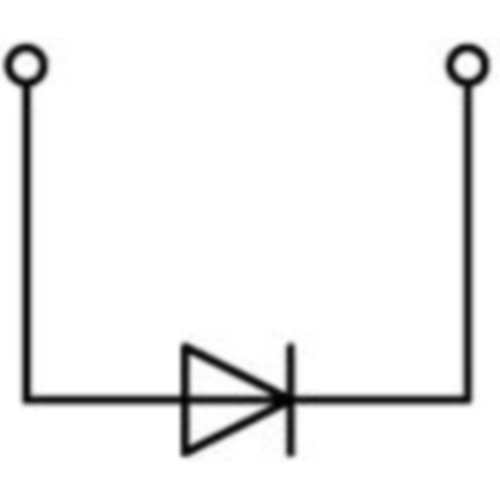

Component terminal; 2 wires; with diode 1N4007; anode left; for mounting rail 35 x 15 and 35 x 7,5; 2,5 mm²; CAGE CLAMP®; 2,50 mm²; grey
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 2 | |
| Version | 2 conductor component terminal with diode 1N4007 | |
| AWG cross-section | AWG 28 to 14 | |
| Rated Voltage | 250 V | |
| Width | 5 mm | |
| Colour | gray | |
| Height | 53 mm | |
| Length | 28 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| Rated current | 500 mA | |
| Pin number | 1 pole |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
