281-603/281-401 | WAGO
2 conductor component terminal with diode 1N5408, spring-clamp connection, 0.08-4.0 mm², 1 pole, 1.5 A, gray, 281-603/281-401
Unit Price (€ / pc.)
9.7937 € *
Available: 12 pcs.
Leadtime: 3 Weeks **
Total Price:
9.79 € *
Price list
Quantity
Price per unit*
1 pcs.
9.7937 €
10 pcs.
9.0083 €
50 pcs.
8.2943 €
100 pcs.
7.5446 €
*incl. VAT plus shipping costs
**Subject to prior sale

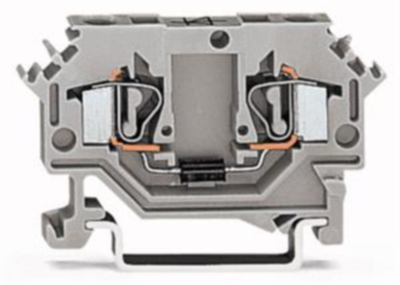

Component terminal block, 281-603/281-401, WAGO

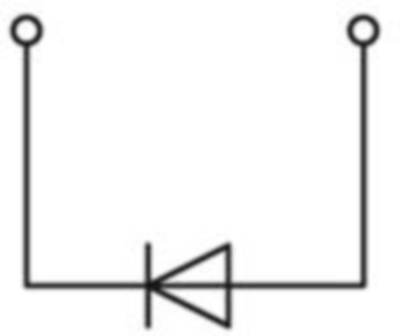

Component terminal block, 2-conductor, with diode 1N5408, anode, right side, for DIN-rail 35 x 15 and 35 x 7.5, 4 mm², CAGE CLAMP, 4,00 mm², gray.
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | 2-Leiter-Bauelementklemme mit Diode 1N5408 | |
| AWG-Leiterquerschnitt | AWG 28 bis 12 | |
| Bemessungsspannung | 250 V | |
| Breite | 6 mm | |
| Farbe | grau | |
| Höhe | 53 mm | |
| Länge | 29 mm | |
| Leiterquerschnitt | 0,08-4,0 mm² | |
| Nennstrom | 1.5 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 49119900 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
