282-682 | WAGO
3-wire feed-through terminal, spring-clamp connection, 0.2-6.0 mm², 1 pole, 41 A, 8 kV, orange, 282-682
Unit Price (€ / pc.)
3.3677 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.37 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3677 €
10 pcs.
3.0940 €
50 pcs.
2.8203 €
100 pcs.
2.5347 €
*incl. VAT plus shipping costs
**Subject to prior sale

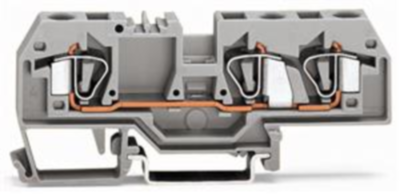

Through terminal block, 282-682, WAGO
3-conductor through terminal block, 6 mm², center marking, for DIN-rail 35 x 15 and 35 x 7.5, CAGE CLAMP, 6,00 mm², orange.
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 3 | |
| Version | 3-wire feed-through terminal | |
| AWG cross-section | AWG 24 to 10 | |
| Rated Voltage | 800 V | |
| Rated surge voltage | 8 kV | |
| Width | 8 mm | |
| Colour | orange | |
| Height | 93 mm | |
| Length | 32.5 mm | |
| Cable cross-section | 0.2-6.0 mm² | |
| Rated current | 41 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
