282-695 | WAGO

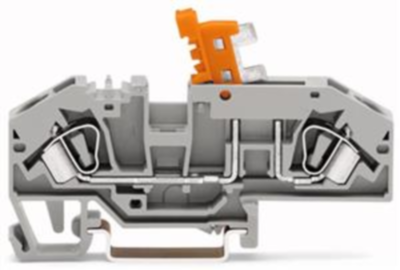

2-wire disconnect terminal block, spring-clamp connection, 0.2-6.0 mm², 2 pole, 30 A, 6 kV, blue, 282-695
Unit Price (€ / pc.)
5.4859 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.49 € *
Price list
Quantity
Price per unit*
1 pcs.
5.4859 €
10 pcs.
5.0456 €
50 pcs.
4.5934 €
100 pcs.
4.1412 €
*incl. VAT plus shipping costs
**Subject to prior sale
2-Conductor disconnect terminal block, 282-695, Wago
2-wire disconnect terminal block with test possibility disconnect knife holder orange blue
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 2 | |
| Version | 2-wire disconnect terminal block | |
| AWG cross-section | AWG 24 to 10 | |
| Rated Voltage | 400 V | |
| Rated surge voltage | 6 kV | |
| Width | 8 mm | |
| Colour | blue | |
| Height | 85 mm | |
| Length | 37 mm | |
| Cable cross-section | 0.2-6.0 mm² | |
| Rated current | 30 A | |
| Pin number | 2 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
