283-101 | WAGO
2-wire feed-through terminal, spring-clamp connection, 0.2-16 mm², 1 pole, 76 A, 8 kV, gray, 283-101
Unit Price (€ / pc.)
3.3796 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
3.38 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3796 €
10 pcs.
3.1059 €
50 pcs.
2.8322 €
100 pcs.
2.5466 €
*incl. VAT plus shipping costs
**Subject to prior sale

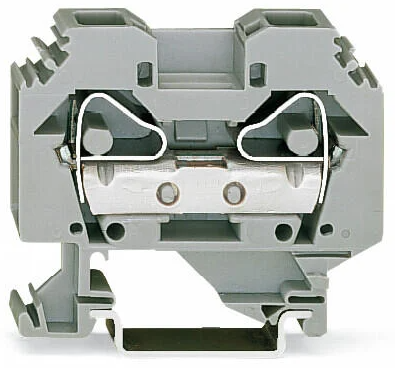

Through terminal block, 283-101, WAGO
2-conductor through terminal block, 16 mm², lateral marker slots, for DIN-rail 35 x 15 and 35 x 7.5, CAGE CLAMP, 16,00 mm², gray.
Technical specifications
| Version | 2-Leiter-Durchgangsklemme | |
| Number of terminals | 2 | |
| Pin number | 1-polig | |
| Cable cross-section | 0,2-16 mm² | |
| AWG cross-section | AWG 24 bis 6 | |
| Rated surge voltage | 8 kV | |
| Rated current | 76 A | |
| Rated Voltage | 800 V | |
| Degree of soiling | 3 | |
| Length | 45.4 mm | |
| Width | 12 mm | |
| Height | 58 mm | |
| Connection | Federklemmanschluss | |
| Colour | grau |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
