283-992 | WAGO

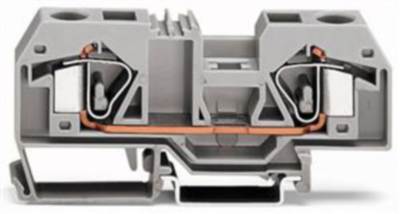

2-wire feed-through terminal, spring-clamp connection, 0.15-16 mm², 1 pole, 68 A, 8 kV, light gray, 283-992
Unit Price (€ / pc.)
4.1412 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.14 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1412 €
10 pcs.
3.8080 €
50 pcs.
3.4629 €
100 pcs.
3.1178 €
*incl. VAT plus shipping costs
**Subject to prior sale
2-Conductor through terminal block, 283-992, Wago
2-conductor through terminal block Ex e II suitable for applications Ex e II light gray
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 2 | |
| Version | 2-wire feed-through terminal | |
| AWG cross-section | AWG 24 to 6 | |
| Rated Voltage | 550 V | |
| Rated surge voltage | 8 kV | |
| Width | 12 mm | |
| Colour | light gray | |
| Height | 94.5 mm | |
| Length | 37.5 mm | |
| Cable cross-section | 0.15-16 mm² | |
| Rated current | 68 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
