285-1161 | WAGO
2-wire feed-through terminal, spring-clamp connection, 50-185 mm², 1 pole, 353 A, 12 kV, gray, 285-1161
Unit Price (€ / pc.)
44.3513 € *
Available: 0 pcs.
Leadtime: On Request **

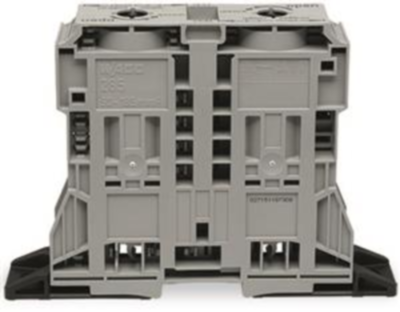

2-Conductor through terminal block, 285-1161, Wago
2-conductor feed-through terminal block; 185 mm²; lateral labeling receptacles; with mounting flanges; POWER CAGE CLAMP; 185.00 mm²; gray
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 2 | |
| Version | 2-wire feed-through terminal | |
| AWG cross-section | AWG 1/0 | |
| Rated Voltage | 1000 V | |
| Rated surge voltage | 12 kV | |
| Width | 32 mm | |
| Colour | gray | |
| Height | 123 mm | |
| Length | 170 mm | |
| Cable cross-section | 50-185 mm² | |
| Rated current | 353 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
