285-135 | WAGO
2-wire feed-through terminal, spring-clamp connection, 6.0-35 mm², 1 pole, 125 A, 8 kV, gray, 285-135
Unit Price (€ / pc.)
7.4375 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
7.44 € *
Price list
Quantity
Price per unit*
1 pcs.
7.4375 €
10 pcs.
6.6878 €
*incl. VAT plus shipping costs
**Subject to prior sale

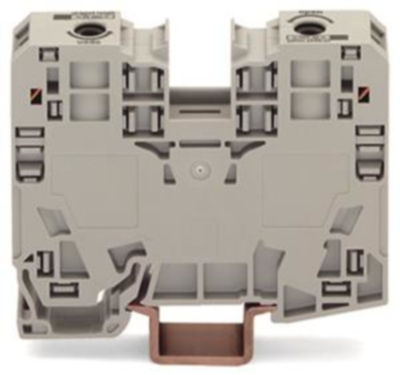

Through terminal block, 285-135, WAGO
2-conductor through terminal block, 35 mm², lateral marker slots, only for DIN 35 x 15 rail, POWER CAGE CLAMP, 35,00 mm², gray.
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 2 | |
| Version | 2-wire feed-through terminal | |
| AWG cross-section | AWG 8 to 2 | |
| Rated Voltage | 1000 V | |
| Rated surge voltage | 8 kV | |
| Width | 16 mm | |
| Colour | gray | |
| Height | 86 mm | |
| Length | 63 mm | |
| Cable cross-section | 6.0-35 mm² | |
| Rated current | 125 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
