285-137 | WAGO
2-wire protective earth terminal, spring-clamp connection, 6.0-35 mm², 1 pole, 125 A, 8 kV, yellow/green, 285-137
Unit Price (€ / pc.)
14.1848 € *
Available: 14 pcs.
Leadtime: 4 Weeks **
Total Price:
14.18 € *
Price list
Quantity
Price per unit*
1 pcs.
14.1848 €
10 pcs.
13.1852 €
50 pcs.
12.1380 €
100 pcs.
11.0432 €
*incl. VAT plus shipping costs
**Subject to prior sale

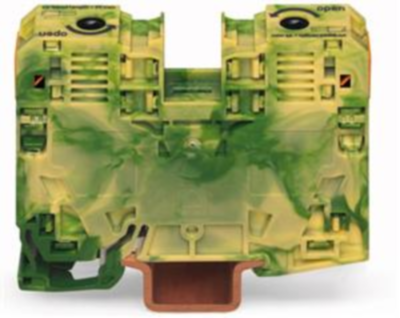

Ground terminal block, 285-137, WAGO
2-conductor ground terminal block, 35 mm², lateral marker slots, only for DIN 35 x 15 rail, POWER CAGE CLAMP, 35,00 mm², green-yellow.
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | 2-Leiter-Schutzleiterklemme | |
| AWG-Leiterquerschnitt | AWG 8 bis 2 | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 16 mm | |
| Farbe | gelb/grün | |
| Höhe | 86 mm | |
| Länge | 63 mm | |
| Leiterquerschnitt | 6,0-35 mm² | |
| Nennstrom | 125 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
