285-141 | WAGO

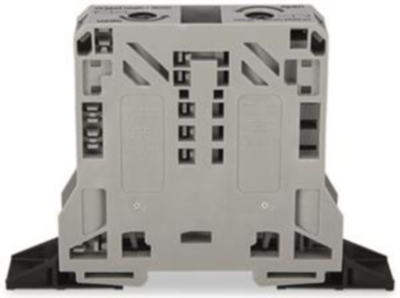

2-wire feed-through terminal, spring-clamp connection, 10-50 mm², 1 pole, 150 A, 8 kV, gray, 285-141
Unit Price (€ / pc.)
18.3141 € *
Available: 0 pcs.
Next delivery: 4 pcs. on 2025-02-24
Leadtime: 4 Weeks **
Total Price:
18.31 € *
Price list
Quantity
Price per unit*
1 pcs.
18.3141 €
10 pcs.
16.8504 €
50 pcs.
15.3272 €
100 pcs.
13.8040 €
*incl. VAT plus shipping costs
**Subject to prior sale
2-Conductor through terminal block, 285-141, Wago
2-conductor feed-through terminal block; 50 mm²; lateral labeling receptacles; with mounting flanges; POWER CAGE CLAMP; 50.00 mm²; gray
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | 2-Leiter-Durchgangsklemme | |
| AWG-Leiterquerschnitt | AWG 8 bis 1/0 | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 20 mm | |
| Farbe | grau | |
| Höhe | 94 mm | |
| Länge | 130 mm | |
| Leiterquerschnitt | 10-50 mm² | |
| Nennstrom | 150 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
