285-150 | WAGO

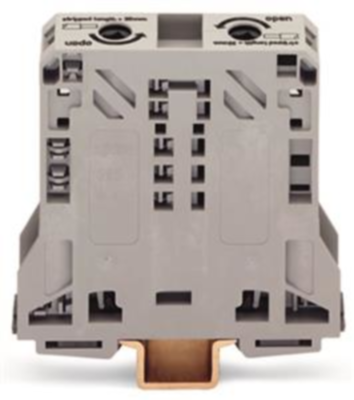

2-wire feed-through terminal, spring-clamp connection, 10-50 mm², 1 pole, 150 A, 8 kV, gray, 285-150
Unit Price (€ / pc.)
16.2673 € *
Available: 1 pcs.
Leadtime: On Request **
Total Price:
16.27 € *
Price list
Quantity
Price per unit*
1 pcs.
16.2673 €
10 pcs.
14.6370 €
100 pcs.
13.1852 €
*incl. VAT plus shipping costs
**Subject to prior sale
Through terminal block, 285-150, WAGO
2-conductor through terminal block, 50 mm², lateral marker slots, only for DIN 35 x 15 rail, POWER CAGE CLAMP, 50,00 mm², gray.
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 2 | |
| Version | 2-wire feed-through terminal | |
| AWG cross-section | AWG 8 to 1/0 | |
| Rated Voltage | 1000 V | |
| Rated surge voltage | 8 kV | |
| Width | 20 mm | |
| Colour | gray | |
| Height | 94 mm | |
| Length | 87 mm | |
| Cable cross-section | 10-50 mm² | |
| Rated current | 150 A | |
| Pin number | 1 pole | |
| Degree of soiling | 3 |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
