285-637 | WAGO
2-wire protective earth terminal, spring-clamp connection, 6.0-35 mm², 1 pole, 125 A, 8 kV, yellow/green, 285-637
Unit Price (€ / pc.)
15.2320 € *
Available: 9 pcs.
Leadtime: 4 Weeks **
Total Price:
15.23 € *
Price list
Quantity
Price per unit*
1 pcs.
15.2320 €
10 pcs.
13.7088 €
50 pcs.
12.3284 €
*incl. VAT plus shipping costs
**Subject to prior sale

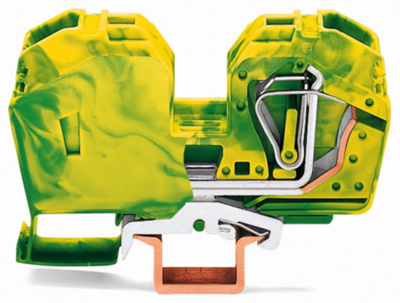

Ground terminal block, 285-637, WAGO
2-conductor ground terminal block, 35 mm², with integrated end plate, side and center marking, only for DIN 35 x 15 rail, CAGE CLAMP, 35,00 mm², green-yellow.
Technical specifications
| Anschluss | Federklemmanschluss | |
| Anzahl der Klemmstellen | 2 | |
| Ausführung | 2-Leiter-Schutzleiterklemme | |
| AWG-Leiterquerschnitt | AWG 10 bis 2 | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstoßspannung | 8 kV | |
| Breite | 16 mm | |
| Farbe | gelb/grün | |
| Höhe | 100 mm | |
| Länge | 53 mm | |
| Leiterquerschnitt | 6,0-35 mm² | |
| Nennstrom | 125 A | |
| Polzahl | 1-polig | |
| Verschmutzungsgrad | 3 |
Download
Logistics
| Ursprungsland | PL |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
