285-950 | WAGO

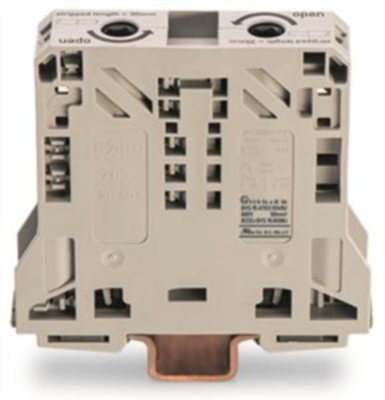

2-wire feed-through terminal, spring-clamp connection, 10-50 mm², 1 pole, 150 A, light gray, 285-950
Unit Price (€ / pc.)
21.4319 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
21.43 € *
Price list
Quantity
Price per unit*
1 pcs.
21.4319 €
10 pcs.
19.7183 €
50 pcs.
18.1356 €
100 pcs.
16.5053 €
*incl. VAT plus shipping costs
**Subject to prior sale
2-Conductor through terminal block, 285-950, Wago
2-conductor feed-through terminal block; 50 mm²; suitable for Ex e II applications; lateral labeling receptacles; only for mounting rail 35 x 15; POWER CAGE CLAMP; 50.00 mm²; light gray
Technical specifications
| Connection | spring-clamp connection | |
| Number of terminals | 2 | |
| Version | 2-wire feed-through terminal | |
| AWG cross-section | AWG 8 to 1/0 | |
| Rated Voltage | 600 V | |
| Width | 20 mm | |
| Colour | light gray | |
| Height | 94 mm | |
| Length | 87 mm | |
| Cable cross-section | 10-50 mm² | |
| Rated current | 150 A | |
| Pin number | 1 pole |
Download
Logistics
| Country of origin | PL |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
