727-134/004-000 | WAGO
8-level shunting terminal, spring-clamp connection, 0.08-1.5 mm², 8 pole, 10 A, 4 kV, blue, 727-134/004-000
Unit Price (€ / pc.)
23.2645 € *
Available: 0 pcs.
Leadtime: 3 Weeks **

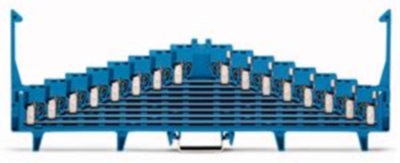

8-Level terminal block, 727-134/004-000, Wago
8-tier shunting terminal block without latching hook Imprint: h-g-f-e-d-c-b-a--a-b-c-d-e-f-g-h 8 x pair-wise connection of the terminal points located on the same tier level for applications Ex i suitable according to EN 60715 blue
Technical specifications
Anschluss | Federklemmanschluss | |
Anzahl der Klemmstellen | 32 | |
Ausführung | 8-Etagen-Rangierklemme | |
AWG-Leiterquerschnitt | AWG 28 bis 16 | |
Bemessungsspannung | 250 V | |
Bemessungsstoßspannung | 4 kV | |
Breite | 7.62 mm | |
Farbe | blau | |
Höhe | 226 mm | |
Länge | 58.5 mm | |
Leiterquerschnitt | 0,08-1,5 mm² | |
Nennstrom | 10 A | |
Polzahl | 8-polig | |
Verschmutzungsgrad | 3 |
Download
Logistics
Ursprungsland | DE |
Zolltarifnummer | 85369010 |
Compliance
RoHS konform | Yes |
Stand der RoHS-Richtlinie | 3/31/15 |
SVHC frei | Yes |
